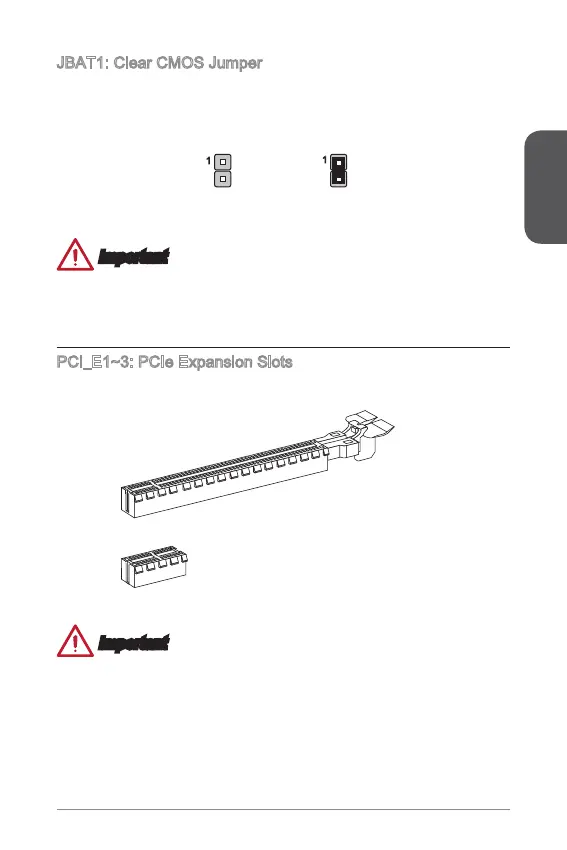

JBAT1: Clear CMOS Jumper
There is CMOS RAM onboard that is external powered from a battery located on the
can automatically boot into the operating system (OS) every time it is turned on. If
Keep Data Clear Data
1
1
Important
Afterwards, open the jumper . Do not clear the CMOS RAM while the system is on
because it will damage the motherboard.
PCI_E1~3: PCIe Expansion Slots
The PCIe slot supports the PCIe interface expansion card.
PCIe 2.0 x1 Slot
PCIe 2.0 x16 Slot
Important
unplug the power supply power cable from the power outlet. Read the expansion
card’s documentation to check for any necessary additional hardware or software
changes.
