MSI B450 GAMING PRO CARBON AC User Manual

63
BIOS Setup

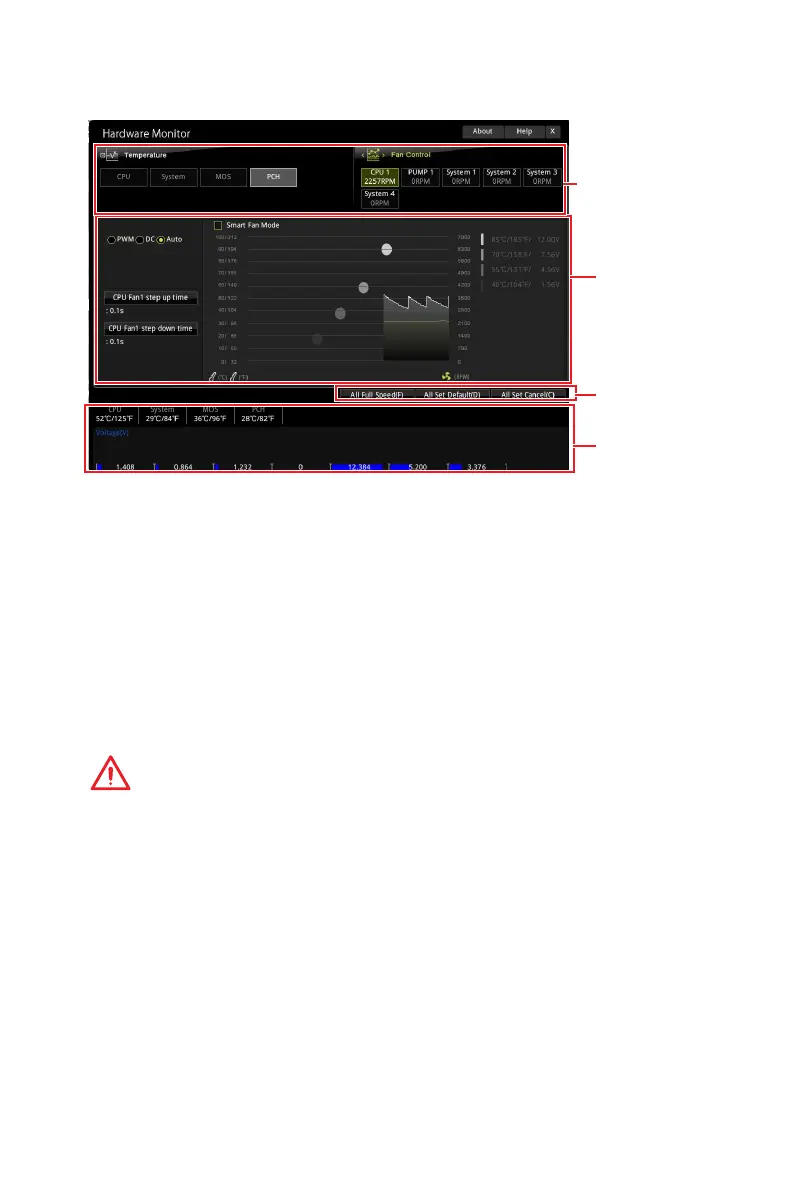

HARDWARE MONITOR
Temperature
& Speed
Fan Manage
Temperature/
Voltage display
Setting
Buttons
f Temperature & Speed
Shows the current CPU temperature, system temperature and fans' speeds.
f Fan Manage
 PWM - allows you to select the PWM mode for fan operation.
 DC - allows you to select the DC mode for fan operation.
 Fan step up/ down time - allows you to set the period of fan step up/ down.
 Smart Fan Mode field - allows you to drag the gradient points to configure
the fan target values for Smart Fan mode. Smart Fan can control the fan speed
automatically depending on the CPU temperature to keep it with in a specific range.
If the current CPU temperature reaches to the target value, the Smart Fan function
will be activated.
Important
y The changing will achieve after you save the changes and reboot the system.
y Make sure fans are working properly after switching the PWM/ DC mode.
f Settings Buttons
 All Full Speed - configures all fans to run at full operating speed.
 All Set Default - configures all fans to run at default operating speed.
 All Set Cancel - discards current changes and restores previous operating fan
speeds .
f Temperature/ Voltage display
Shows CPU/ system temperature and the current voltages of CPU, system and
memory.

MSI B450 GAMING PRO CARBON AC Specifications

General

Audio chip	Realtek ALC1220
Component for	PC
Power source type	ATX
Motherboard chipset	AMD B450
Audio output channels	7.1 channels
Motherboard chipset family	AMD
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466 MHz
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX
Processor socket	Socket AM4
Compatible processor series	AMD Athlon, AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Maximum number of SMP processors	1
Number of M.2 (M) slots	2
PCI Express x1 (Gen 2.x) slots	3
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
BIOS type	UEFI
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Intel® I211-AT
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	5.0
Ethernet interface type	Gigabit Ethernet
Cables included	SATA

Weight and Dimensions

Depth	244 mm
Width	305 mm
