Overview of Components
M2_1~2: M.2 Slots (Key M)
M2_1
M2_2
Video Demonstration
Watch the video to learn how to use M.2
Shield.
https://youtu.be/NwtQBpkUazs

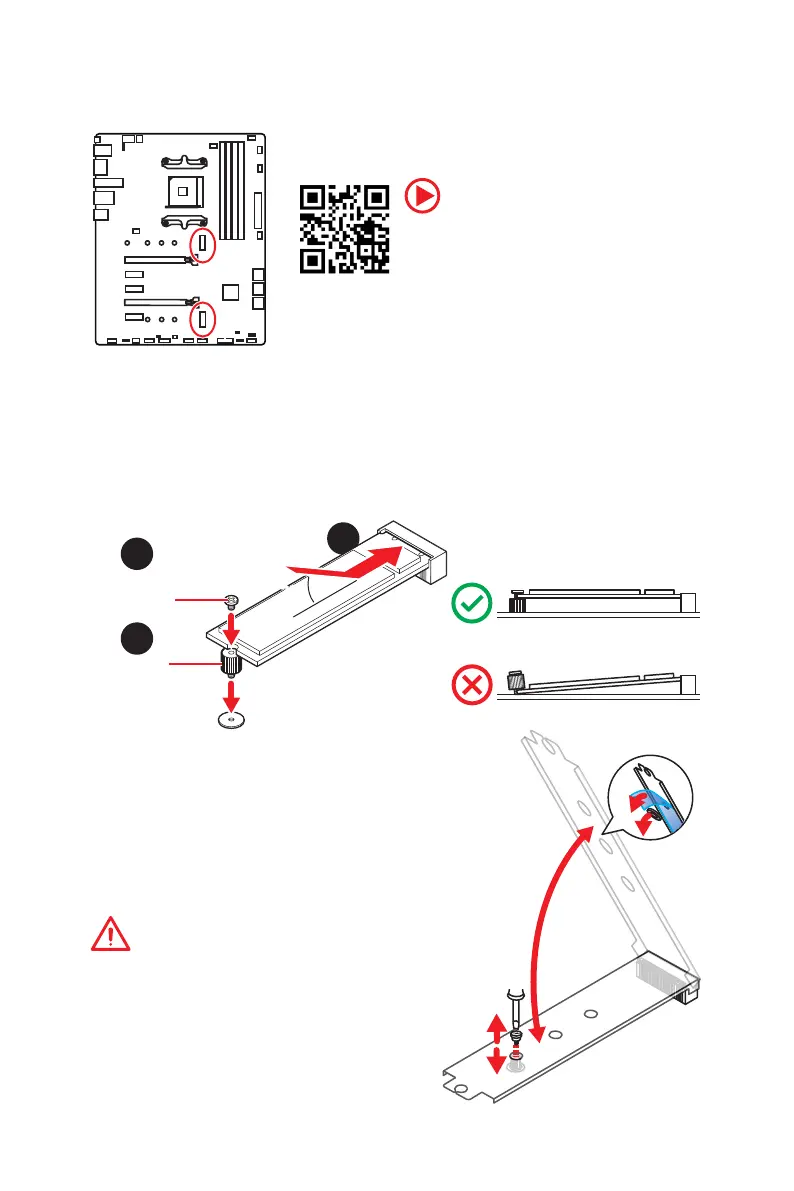

Installing M.2 SSD
1. Move the position of the standoffs
according to your M.2 SSDs length if
need.
2. Insert your M.2 SSD into the M.2 slot at a
30-degree angle.
3. Secure the M.2 SSD in place with
the supplied M.2 screw.
Using M.2 shield
We provide the M.2 shield on the M2_1 slot to help dissipate
heat away from the M.2 SSD. Before installing the M.2
SSD for the first time, you need to remove the screw, lift
the cover and remove the protective film and the round
rubber from the thermal pad.
Important
If you don’t need the M.2 shield, you can remove it.
1
2
3
30º30º
Standoff
Supplied
M.2 screw
To Next Page
