MSI B550M PRO-VDH WIFI6 User Manual

6
Quick Start
HDD LED
RESET SW

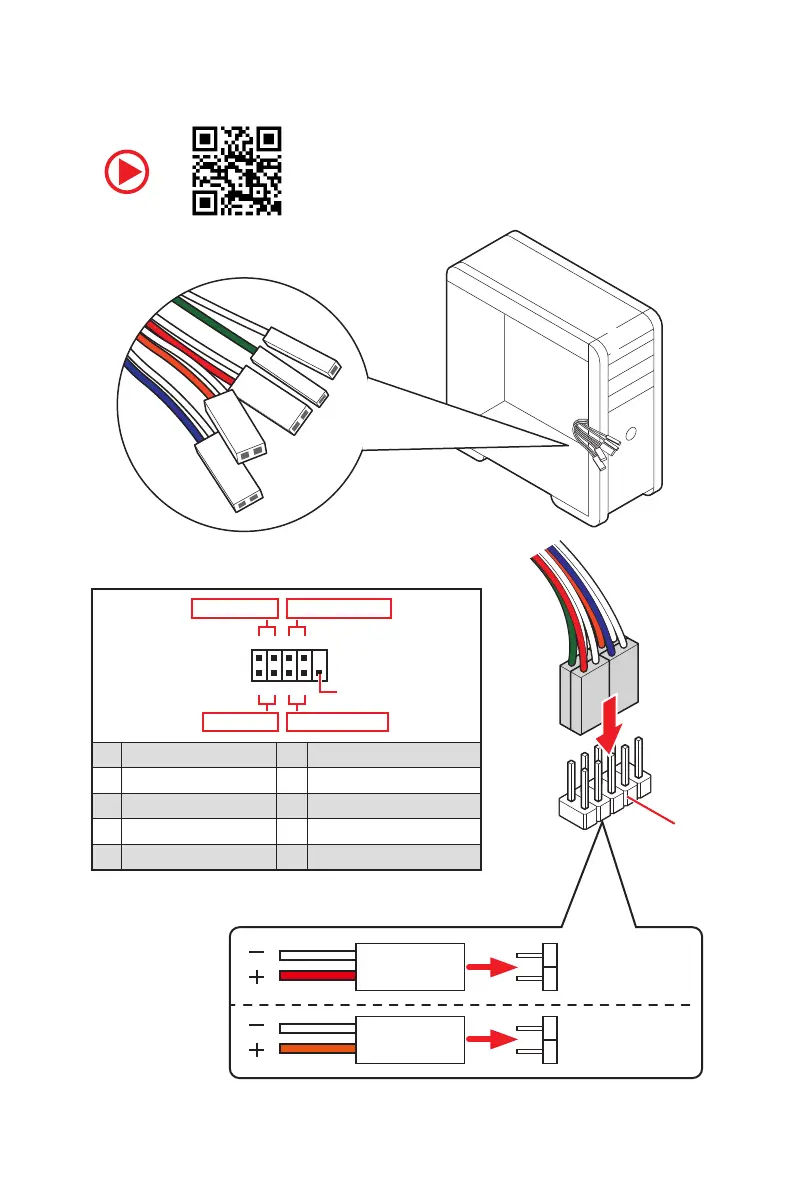

Connecting the Front Panel Header
http://youtu.be/DPELIdVNZUI
JFP1
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED

MSI B550M PRO-VDH WIFI6 Specifications

General

Chipset	AMD B550
Form Factor	Micro ATX
Max Memory	128GB
Socket	AM4
Memory Slots	4
PCIe Slots	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1
Storage Interface	4 x SATA 6Gb/s
Video Outputs	1 x HDMI, 1 x DisplayPort
Power Connector	1 x 24-pin ATX 1 x 8-pin ATX 12V
USB Ports	2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0
Bluetooth	Bluetooth 5.1
