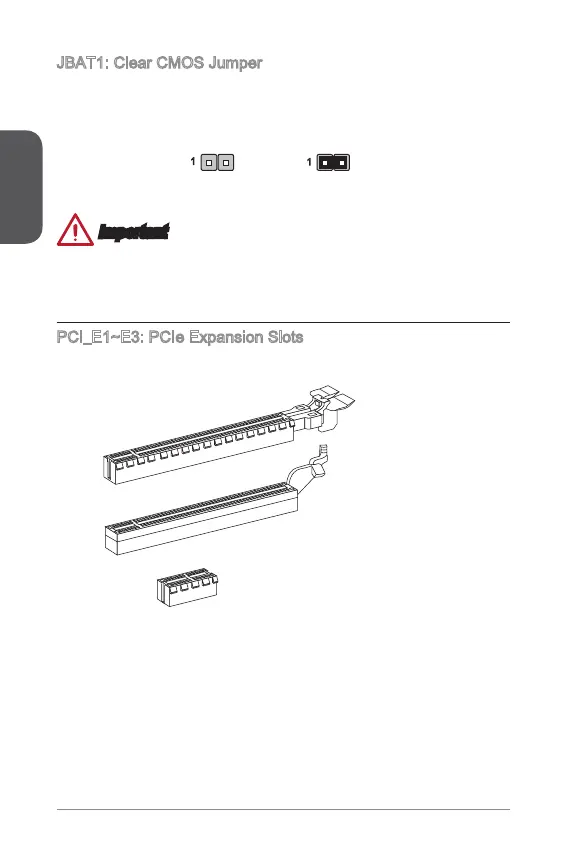

JBAT: Clear CMOS Jumper
There is CMOS RAM onboard that is external powered from a battery located on the
motherboard to save system conguration data. With the CMOS RAM, the system
can automatically boot into the operating system (OS) every time it is turned on. If
you want to clear the system conguration, set the jumpers to clear the CMOS RAM.
Keep Data Clear Data
Important
You can clear the CMOS RAM by shorting this jumper while the system is o.
Afterwards, open the jumper . Do not clear the CMOS RAM while the system is on
because it will damage the motherboard.
PCI_E~E3: PCIe Expansion Slots
The PCIe slot supports the PCIe interface expansion card.
PCIe x Slot
PCIe 3.0 x6 Slot
(By B85 chipset)
PCIe 2.0 x6 Slot
(By H8 chipset)
