CX623（MS-168A）Disassemble Guide
6、SEPARATE UPPER CASE AND LOWER CASE

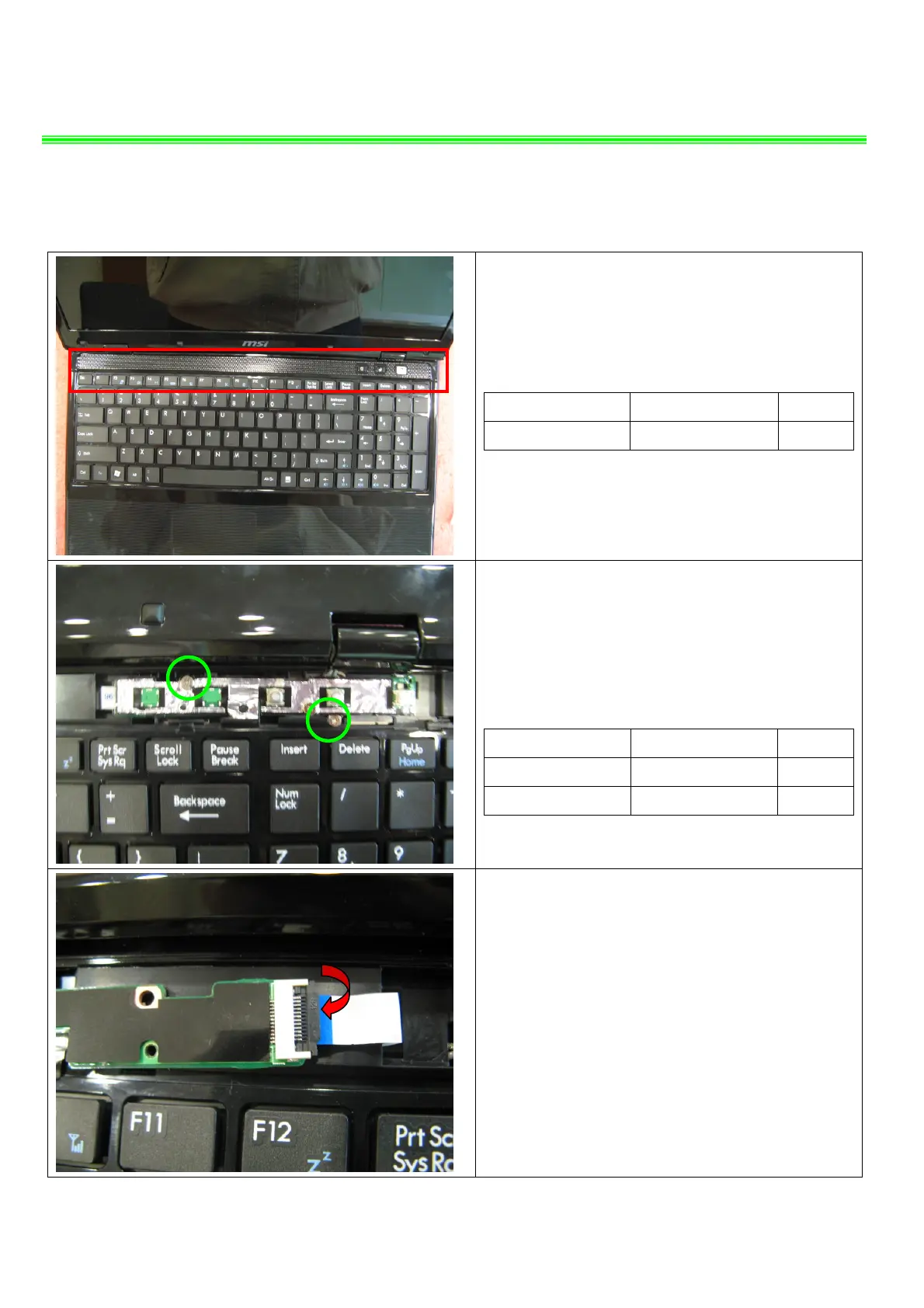

6.1：Before remove K/B, firstly remove the
Hinge Cover.
Component P/N Qty
Hinge Cover
307-684E224-P89 1
6.2：Remove the 2 screws (M2*3mm).
Attention: the screw driver torque is: 1.5-2.0Kgf-cm
Component P/N Qty
Launch board
607-168AB-01S 1
Screw E43-1203003-G68 2
6.3：First release the connector that stabilize the
cable, then remove Launch board according to the
direction that pic shows.
