CX623（MS-168A）Disassemble Guide
5、THERMAL-KIT、CPU、DRAM AND WLAN MODULE

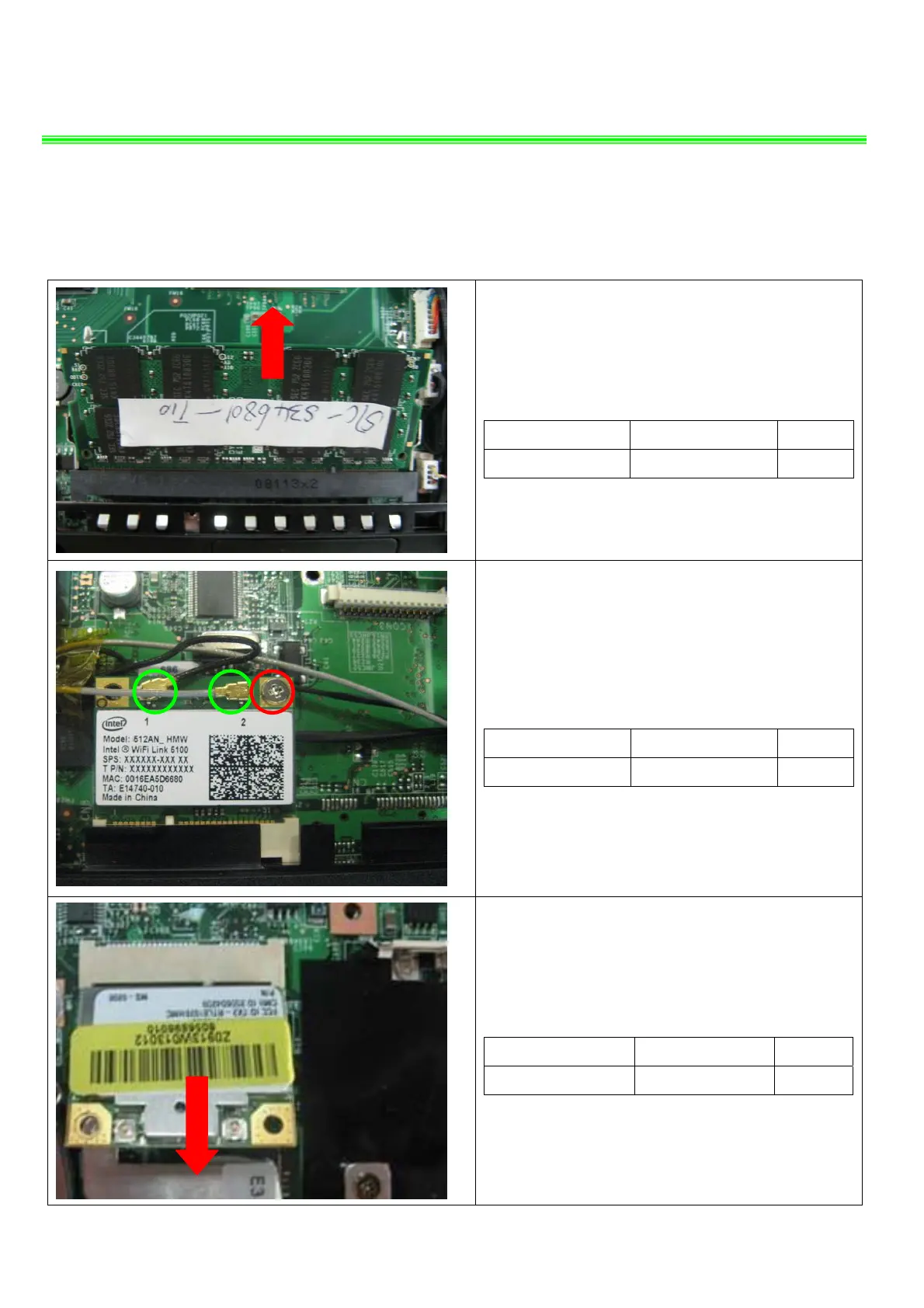

5.4：Then remove the RAM module according the
direction as pic shows.
Component P/N Qty
RAM Module S7C-S458201-H23 1
5.5：Remove one screw (M2*3mm); then remove
the two side wireless card antenna as pic shows.
Attention: the screw driver torque is: 1.5-2.0Kgf-cm
Component P/N Qty
Screw E43-1203003-G68 1
5.6：Remove the WLAN module according to the
direction of pic shows.
Component P/N Qty
WLAN Module S57-0800290-T46 1
To Next Page
