CX623（MS-168A）Disassemble Guide
5、THERMAL-KIT、CPU、DRAM AND WLAN MODULE

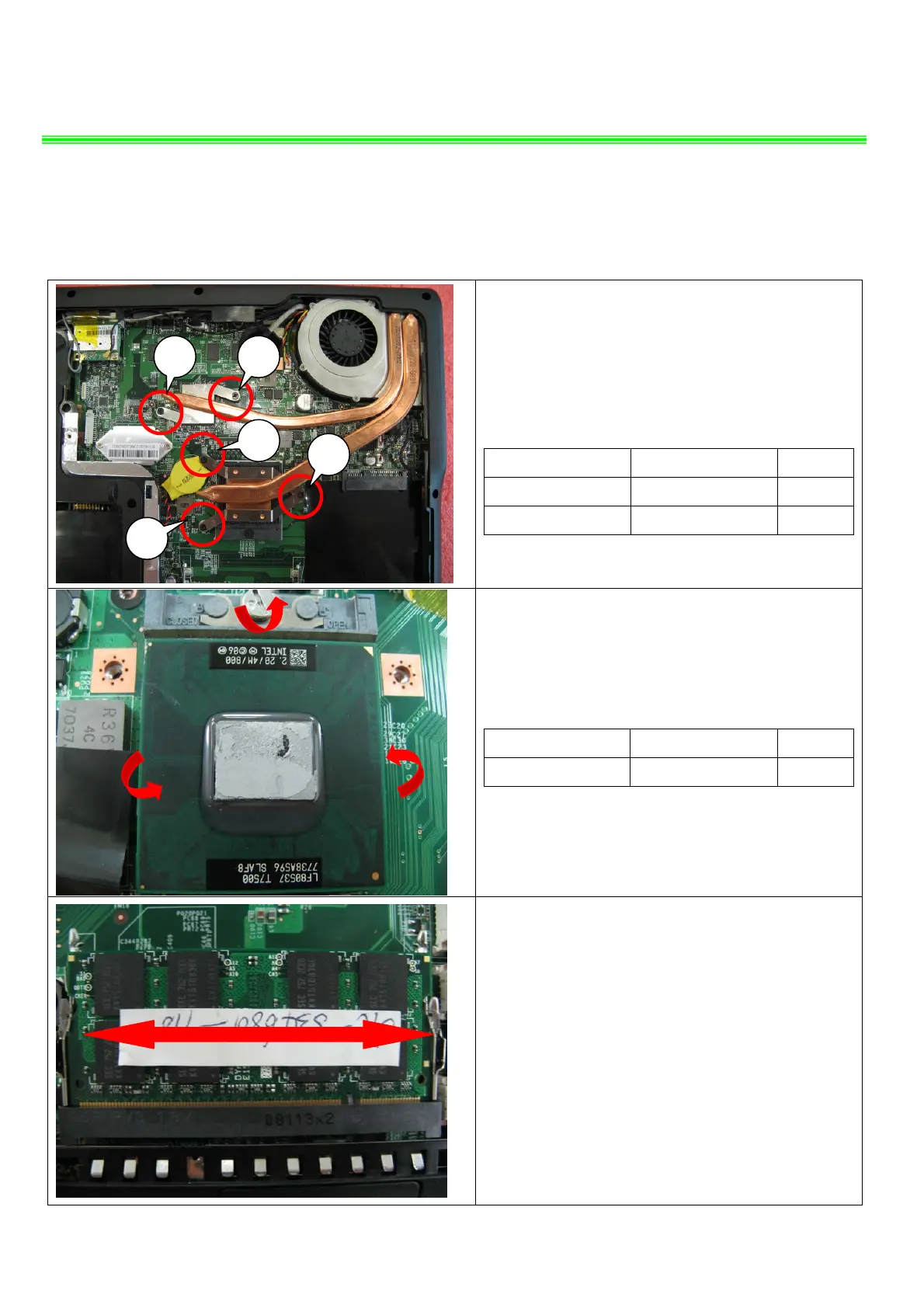

5.1:Remove the 5 screws(M2.5*5mm) and FAN
cable, after that remove the Fansink.
Attention：the screw driver torque is 2.2-2.8Kgf-cm
Component P/N Qty
Screw E43-1255001-G68 5
Fansink E32-0800562-TA9 1
5.2：
Open the CPU Slot with Screw Driver, then
remove CPU Module
as below.
Component P/N Qty
CPU A13-2120106-I06 1
5.3：Push the two side shielding of RAM as pic
Shows.
1 2
5
4
3
