Introductions

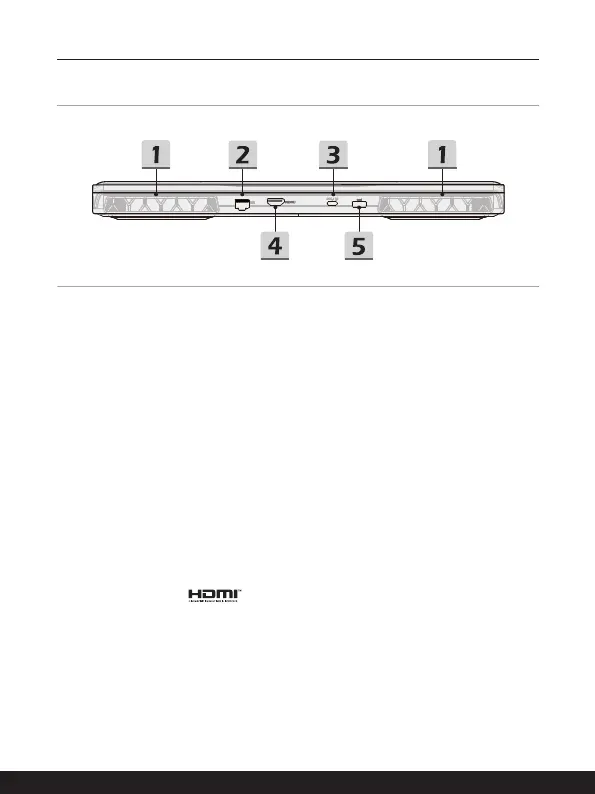

Rear Side View
1. Ventilator
The ventilator is designed to cool the system. DO NOT block the ventilator for air
circulation.
2. RJ-45 Connector
The Ethernet connector, with optionally supported transmitting rate of
10/100/1000/2500 megabits per second, is used to connect a LAN cable for network
connection.
3. USB 3.2 Gen 2 Port (Type-C) (with DisplayPort function)
USB 3.2 Gen 2, the SuperSpeed USB 10Gbps, delivers the higher interface speeds
for connecting various devices, such as storage devices, hard drives, or video
cameras, and offers more advantages over high-speed data transferring.
The slim and sleek USB Type-C connector features reversible plug orientation and
cable direction and supports 5V/3A portable charging power when AC power is
connected. However, the maximum portable charging power limitation may up to
5V/1.5A while only battery DC power is connected. And it also supports scalable
performance to future-proof solution, including USB 3.x, DisplayPort, Audio.
4. HDMI™ Connector
HDMI™ (High-Definition Multimedia Interface) technology is the industry-leading
interface and de-facto standard connecting high-definition (HD) and ultra high-
definition (UHD) equipment.
5. Power Connector
This connector is to connect the AC/DC adapter and supply power for the notebook.
