GT60（MS-16F3）Disassembly Guide
4、THERMAL-KIT、CPU AND DRAM

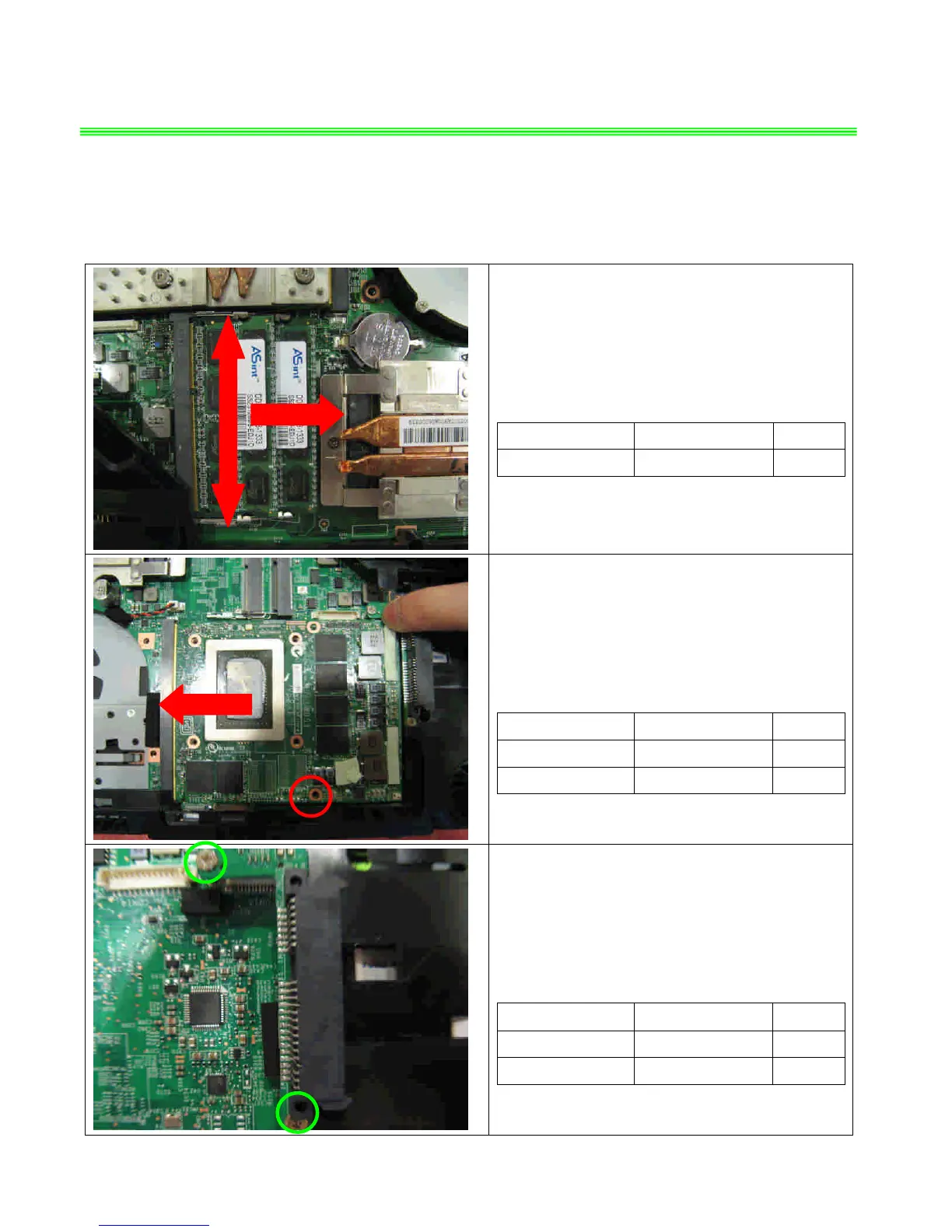

4.4 Push the two side shielding of RAM as pic
shows; Then remove the RAM module according
the direction as pic shows.
Component P/N Qty
RAM Module S7C-S469H03-E54 2
4.5：Remove 1 screw (M2.5*5mm); then remove
the VGA card as pic shows.
Attention: the screw driver torque is: 2.5-3.0Kgf-cm
Component P/N Qty
VGA Card 607-1W071-05S 1
Screw E43-1255001-H29 1
4.6：Remove 2screws (M2*3mm); then remove the
HDD connector.
Attention: the screw driver torque is: 1.5-2.0Kgf-cm
Component P/N Qty
HDD connector
607-16F3A-01S 1
Screw E43-1203003-H29 2
