GT60（MS-16F3）Disassembly Guide

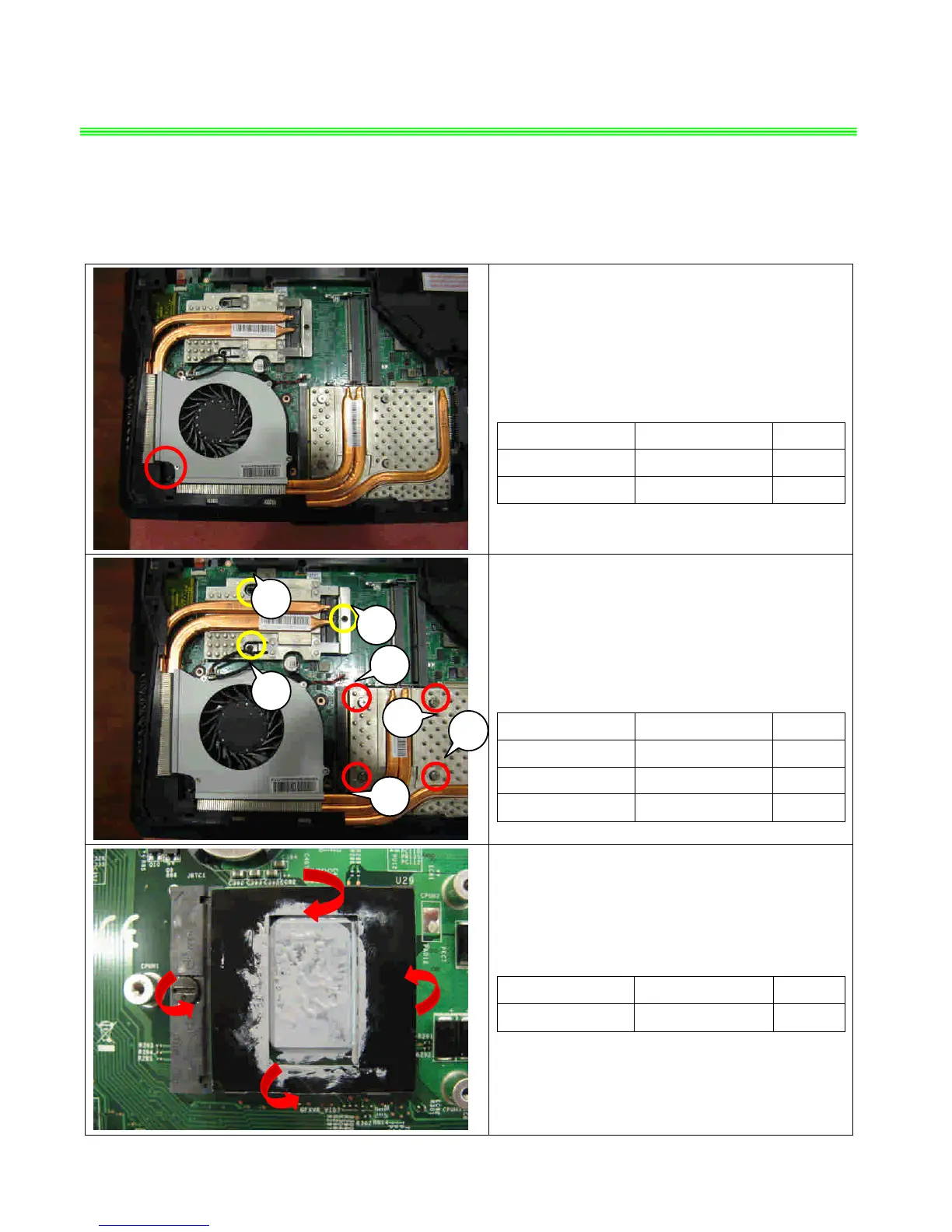

4、THERMAL-KIT、CPU AND DRAM
4.1: Remove the 1 screw(M2.5*5mm) and FAN
cable, after that remove the Fan.
Attention：the screw driver torque is 2.5-3.0Kgf-cm
Component P/N Qty
Screw E43-1255001-H29 1
FAN E33-0800182-MC2 1
4.2: Remove the 3 screws (M2.5*5mm) and 4
spring screws, after that remove the two Heatsink.
Attention：the screw driver torque is 2.5-3.0Kgf-cm
Component P/N Qty
Screw E43-1255001-H29 3
Heatsink E31-0403231-TA9 1
Heatsink E31-0900332-TA9 1
4.3：Open the CPU Slot with Screw Driver, then
remove CPU Module as below.
Component P/N Qty
CPU G51-N1CPX2V-I06 1
4
7
2
1
5
6
3
