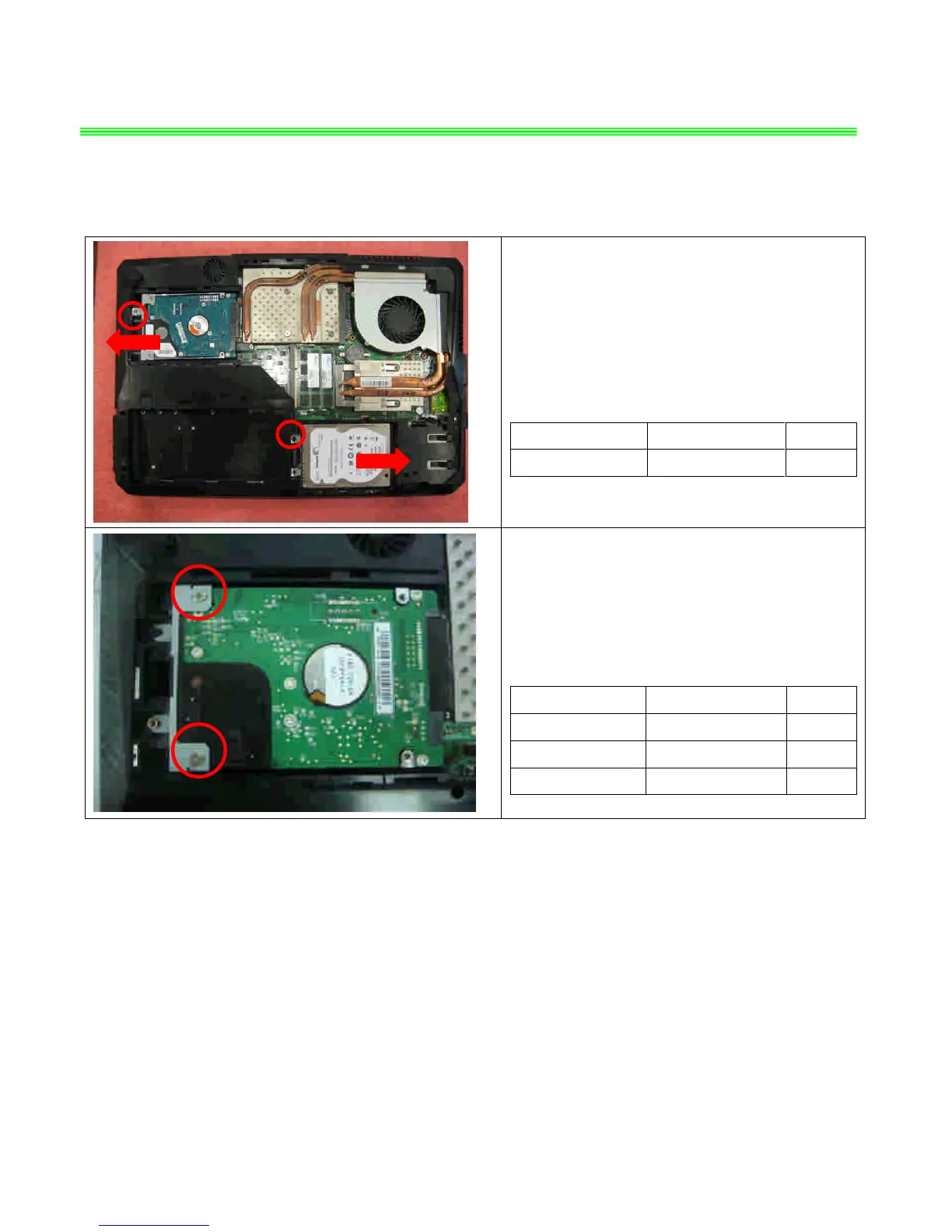

GT60（MS-16F3）Disassembly Guide
3、HDD MODULE
3.1: Remove the 2 screws (M2.5*5mm); then
remove the two HDD Module according to the
direction as pic shows.
Attention: the screw driver torque is 2.5-3.0Kgf-cm
Component P/N Qty
Screw E43-1255001-H29 2
3.2: Remove the 4 screws (M3*4mm) that stabilize
the two HDD bracket, then remove the HDD
bracket.
Attention: the screw driver torque is 2.5-3.0Kgf-cm
Component P/N Qty
Screw E43-1304009-G68 4
HDD Bracket 307-6F10112-C22 2
HDD Module S71-2475704-H05 2
To Next Page
