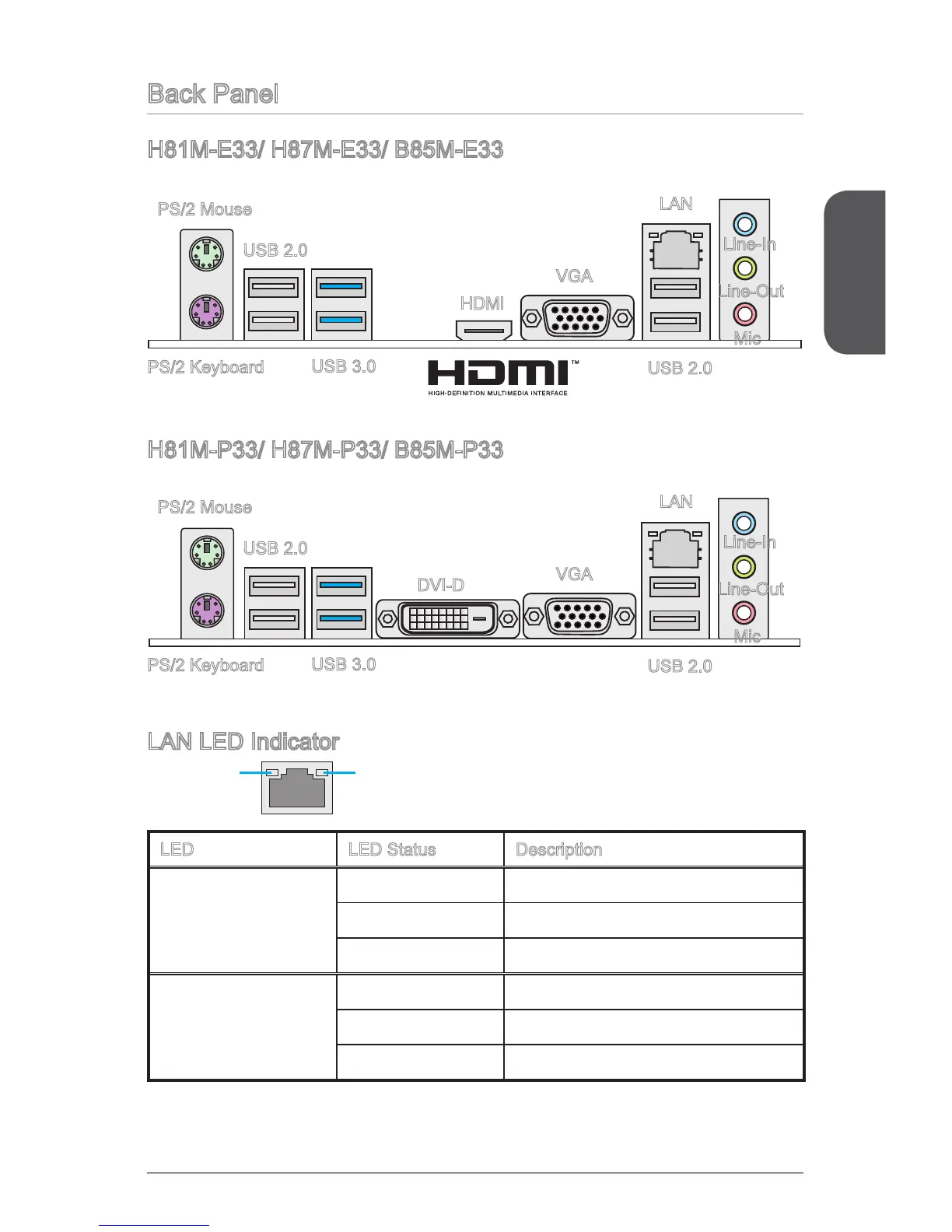

Back Panel
LAN LED Indicator
LINK/ACT
LED
SPEED
LED
LED LED Status Description
Link/ Activity LED
O󰘯 No link
Yellow Linked
Blinking Data activity
Speed LED
O󰘯 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
H81M-E33/ H87M-E33/ B85M-E33
H81M-P33/ H87M-P33/ B85M-P33
PS/2 Mouse
PS/2 Keyboard
USB 2.0
USB 3.0
HDMI
VGA
Line-In
Line-Out
Mic
USB 2.0
LAN
PS/2 Mouse
PS/2 Keyboard
USB 2.0
USB 3.0
DVI-D
VGA
Line-In
Line-Out
Mic
USB 2.0
LAN
