MSI Infinite Series

7
Getting Started
17

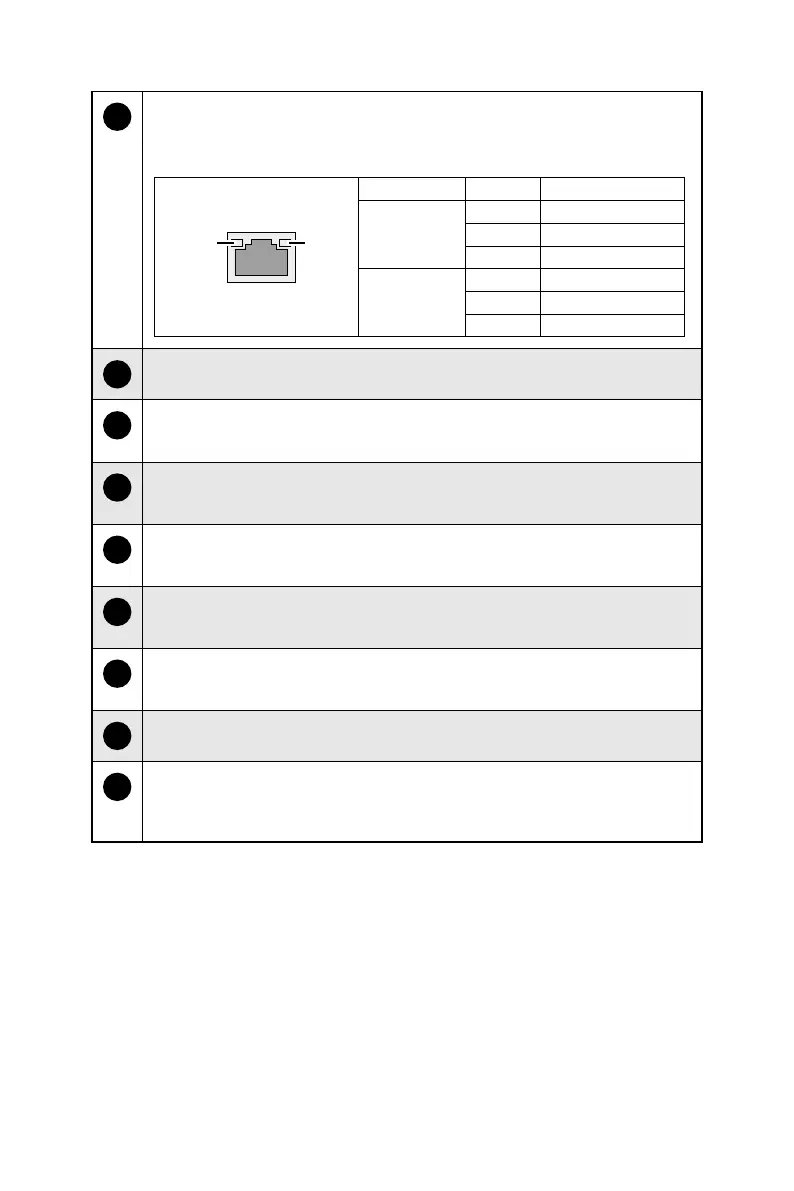

2.5 Gbps LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
LINK/ACT
LED
SPEED
LED
LED Status Description
Link/ Activity
LED
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Off 10 Mbps
Green 100/1000 Mbps
Orange 2.5 Gbps
18
S/PDIF-Out
19
RS-Out Jack
Rear surround sound line out in 4/ 5.1/ 7.1 channel mode.
20
CS-Out Jack
Center/ subwoofer line out in 5.1/ 7.1 channel mode.
21
Mic-In Jack
This connector is provided for microphones.
22
Line-Out Jack
This connector is provided for headphones or speakers.
23
Line-In Jack
This connector is provided for external audio output devices.
24
Power Jack
25
Power Supply Switch
Switch this switch to I can turn on the power supply. Switch it to 0 to cut off
the power circulation.
