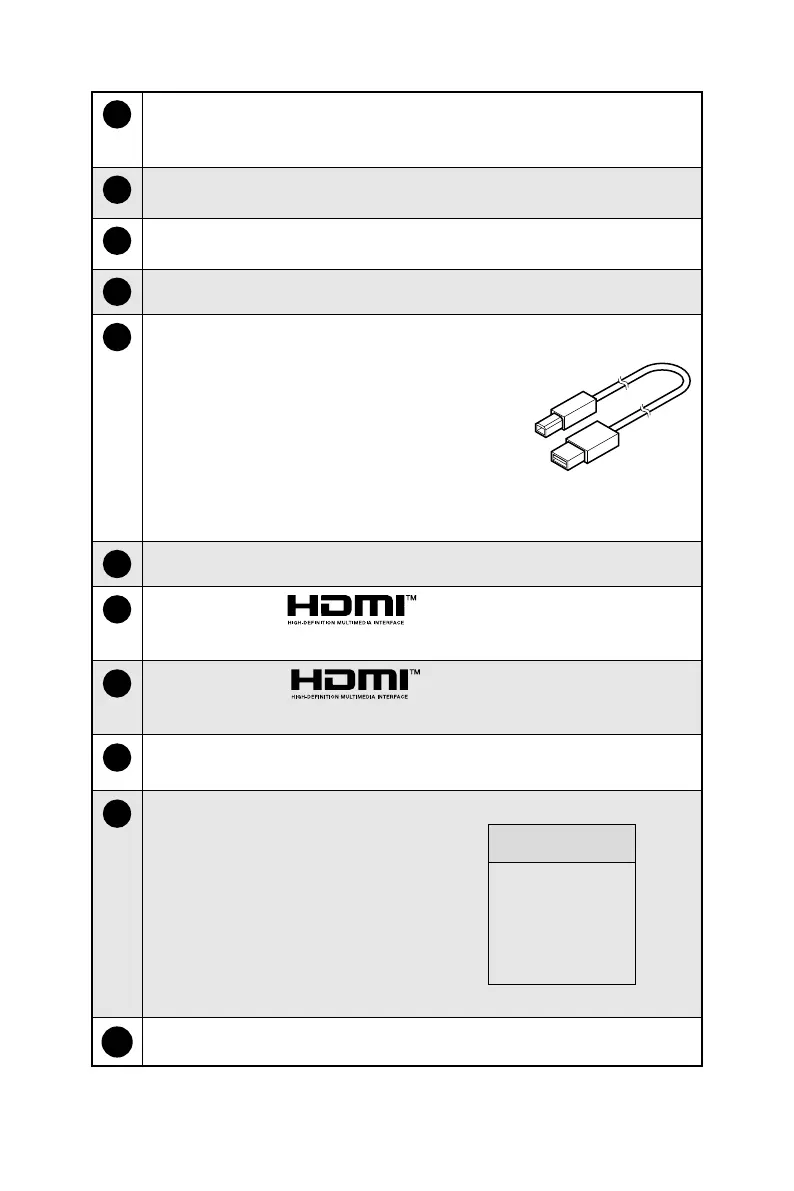

Getting Started
1
Power LED
Lit in white after the monitor is turned on. If no signal input, the LED will
turn into orange. Lit in orange when the monitor is in Stand-by mode.
2
Power Button & Navi Key
3
Cable Routing Hole
4
Power Jack
5
USB 2.0 Type-B Upstream Port
For USB Upstream Cable.
⚠
Important
Check the package for USB
Upstream Cable and connect it
to the PC and monitor. Once this
cable is connected, the USB Type-A
Downstream Ports on the monitor
will be ready for use.
To PC
To Monitor
6
USB 2.0 Type-A Port
7
HDMI™ Connector
Supports HDMI™ CEC, 3840x2160@144Hz as specified in HDMI™ 2.1.
8
HDMI™ Connector
Supports 3840x2160@144Hz as specified in HDMI™ 2.1.
9
DisplayPort
Supports 3840x2160@144Hz as specified in DisplayPort 1.4a.
10
USB Type-C Port
This port supports DisplayPort
Alternate (DP Alt) Mode and up to
20V/3.25A (65W) power delivery.
⚠
Important
Your USB Type-C Port signal source
and cable must support DisplayPort
Alternate Mode to enable video
output to the monitor.
USB Type-C
Power Delivery
5V / 3A (15W)
9V / 3A (27W)
12V / 3A (36W)
15V / 3A (45W)
20V / 3.25A (65W)
11
Headphone Jack
To Next Page
