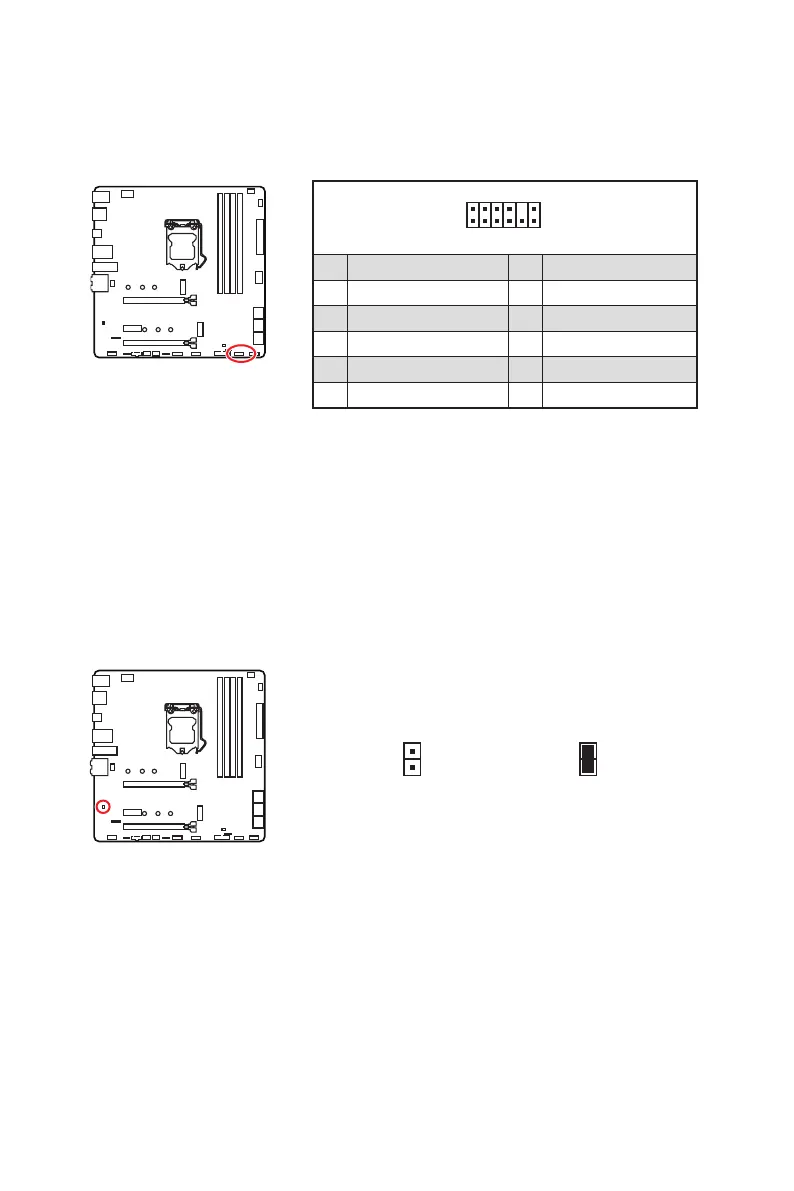

27
Vue d’ensemble des composants
JBAT1 : Cavalier Clear CMOS (Réinitialisation BIOS)
Une mémoire CMOS est intégrée et est alimentée en externe par une batterie située
sur la carte mère afin de conserver les données de configuration système. Si vous
souhaitez nettoyer la configuration système, placez le cavalier sur Effacer CMOS de
manière à nettoyer la mémoire CMOS.
Keep Data
(défaut)
Effacer CMOS/
Réinitialiser BIOS
Réinitialiser le BIOS aux valeurs par défaut
1. Eteignez l’ordinateur et débranchez le câble d’alimentation de la prise électrique.
2. Utilisez un couvercle de cavalier pour fermer JBAT1
3. Enlevez le couvercle de cavalier du JBAT1.
4. 
1
2 12
11
1 SPI Power 2 SPI Chip Select
3
Master In Slave Out (SPI Data)
4
Master In Slave In (SPI Data)
5 Reserved 6 SPI Clock
7 Ground 8 SPI Reset
9 Reserved 10 No Pin
11 Reserved 12 Interrupt Request
JTPM1 : Connecteur de module TPM
Ce connecteur est relié à un module TPM (Trusted Platform Module). Veuillez vous
référer au manuel du module TPM pour plus d’informations.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MSI MAG B460M MORTAR WIFI and is the answer not in the manual?

MSI MAG B460M MORTAR WIFI Specifications

General IconGeneral
Processor socketLGA 1200 (Socket H5)
Processor manufacturerIntel
Compatible processor seriesIntel Celeron, Intel Pentium G
Audio chipRealtek ALC1200
Component forPC
Motherboard chipsetIntel B460
Audio output channels7.1 channels
Motherboard form factormicro ATX
Non-ECCYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR4-SDRAM
Maximum internal memory128 GB
Supported memory clock speeds2666, 2933 MHz
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots2
RAID levels0, 1, 5, 10
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
LAN controllerRealtek RTL8125B
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version5.1
Ethernet interface type2.5 Gigabit Ethernet
Number of SATA III connectors6
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
BIOS typeUEFI AMI
ACPI version6.2
BIOS memory size128 Mbit
System Management BIOS (SMBIOS) version3.2
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel processing technology support-
Harmonized System (HS) code84733020
Weight and Dimensions IconWeight and Dimensions
Width243 mm
