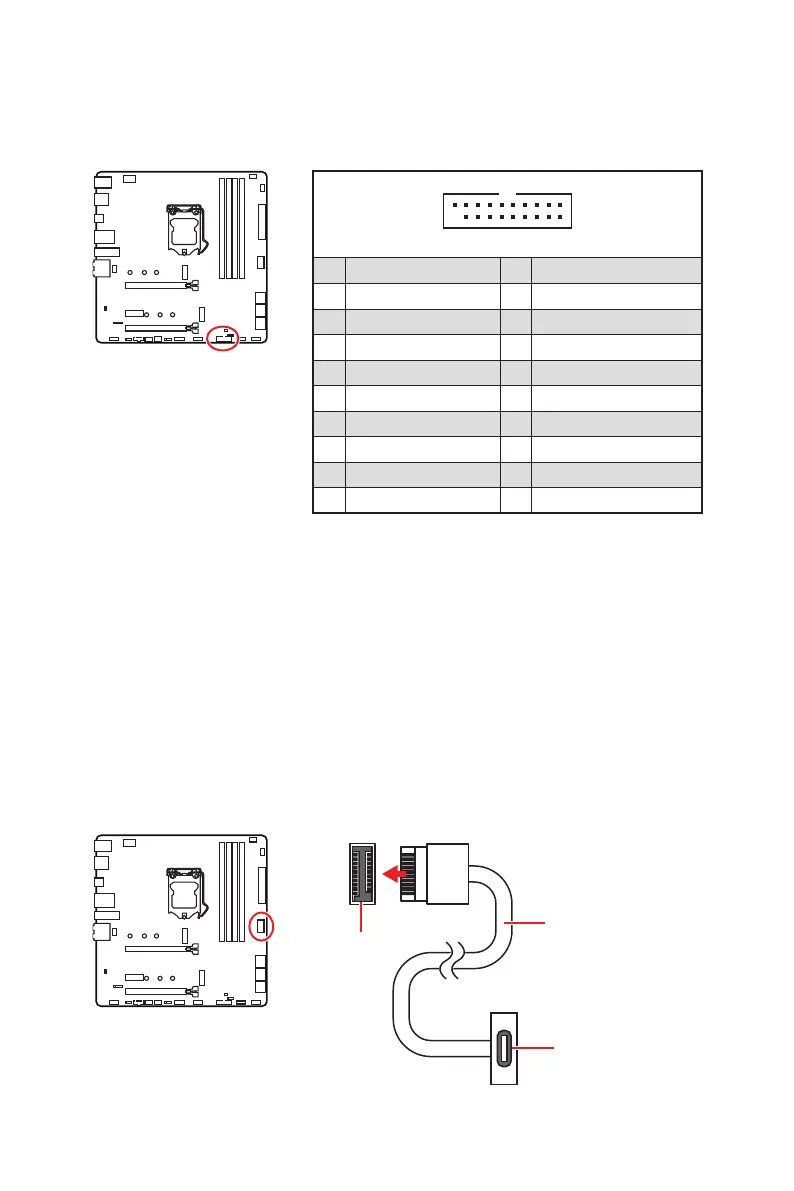

JUSB3: USB 3.2 Gen 1 Connector





Important

Note that the Power and Ground pins must be connected correctly to avoid possible

damage.

1 10

1 Power 11 

2  12 

   Ground

4 Ground 14 

5  15 

6  16 Ground

7 Ground 17 

8  18 

9  19 Power

10 Ground 20 No Pin

JUSB4: USB 3.2 Gen 1 Type-C Connector





sure to connect it with the corresponding orientation.







the front panel

Questions and Answers:

Need help?

Do you have a question about the MSI MAG B460M MORTAR and is the answer not in the manual?

MSI MAG B460M MORTAR Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Maximum number of SMP processors	1
Cables included	SATA
Audio chip	Realtek ALC1200
Component for	PC
Motherboard chipset	Intel B460
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
ACPI version	6.2
BIOS memory size	128 Mbit
Clear CMOS jumper	Yes
System Management BIOS (SMBIOS) version	3.2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Number of SATA III connectors	6
Wi-Fi	No
LAN controller	Realtek RTL8125B
Ethernet interface type	2.5 Gigabit Ethernet
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III
Maximum resolution	4096 x 2160 pixels
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2666, 2933 MHz
