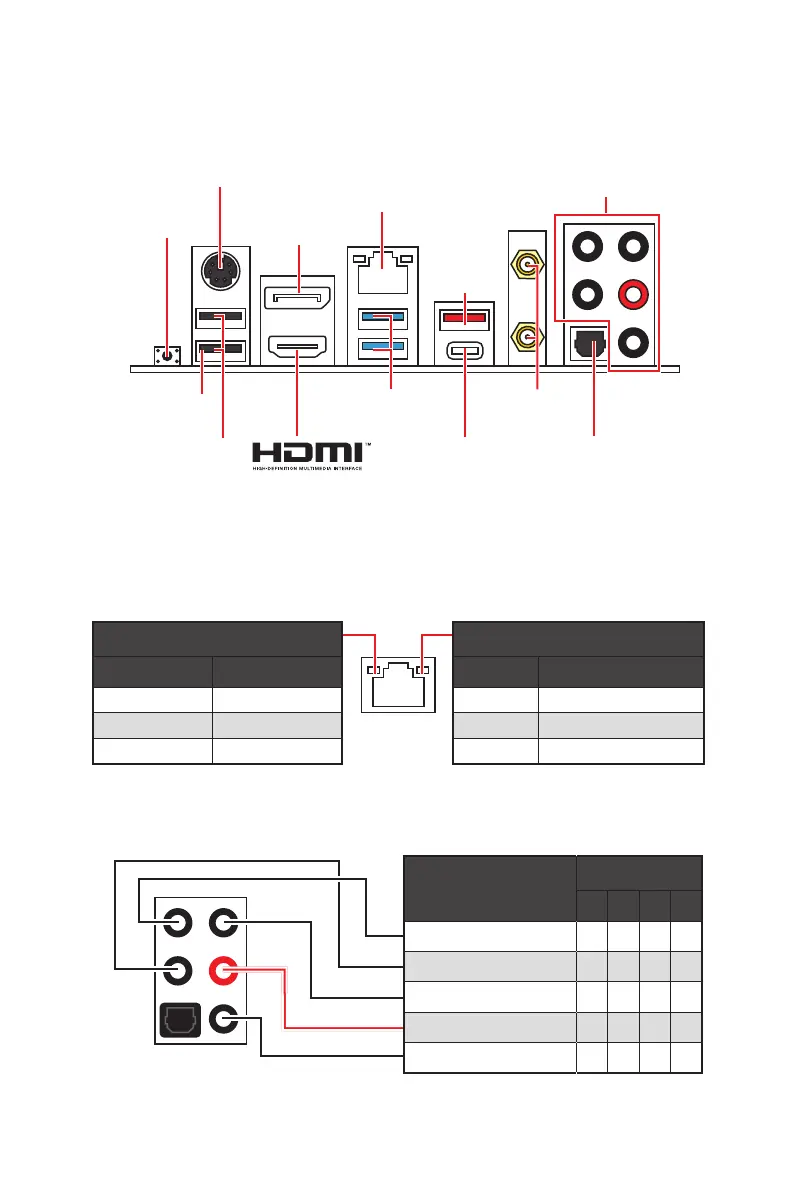

Rear I/O Panel
USB 3.2 Gen 1
(5Gbps) Type-A
Flash BIOS
Port
Rear I/O Panel
PS/2 Combo port
2.5 Gbps LAN
DisplayPort
USB 2.0
Type-A
Audio Ports
Optical
S/PDIF-Out
Wi-Fi Antenna
connectors
USB 3.2 Gen 2
(10Gbps) Type-C
USB 3.2
Gen 2
(10Gbps)
Type-A
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status 2.5 Gbps LAN
Off 10 Mbps
Green 100/ 1000 Mbps
Orange 2.5 Gbps
LAN Port LED Status Table
Flash BIOS Port/ Button - Please refer to page 35 for Updating BIOS with Flash
BIOS Button.
Flash BIOS
Button
Audio Ports
2 4 6 8
Center/ Sub-woofer Out ● ●
Rear Speaker Out ● ● ●
Line-In/ Side Speaker Out ●
Line-Out/ Front Speaker Out ● ● ● ●
Mic In
(●: connected, Blank: empty)
