MSI MAG B550 TOMAHAWK MAX WIFI

VII
Quick Start



󳲞󶬗󼗶󻡦󽄚󺼂󼳖󺼗󼼢󼏢󺪢󽍊󺰢
󸹒󳲞󱶝󶹌󹬻󴍆󹆾󷉥󸶚󳲞󱶝󶹌󹬻󴍆󳲞󲤆

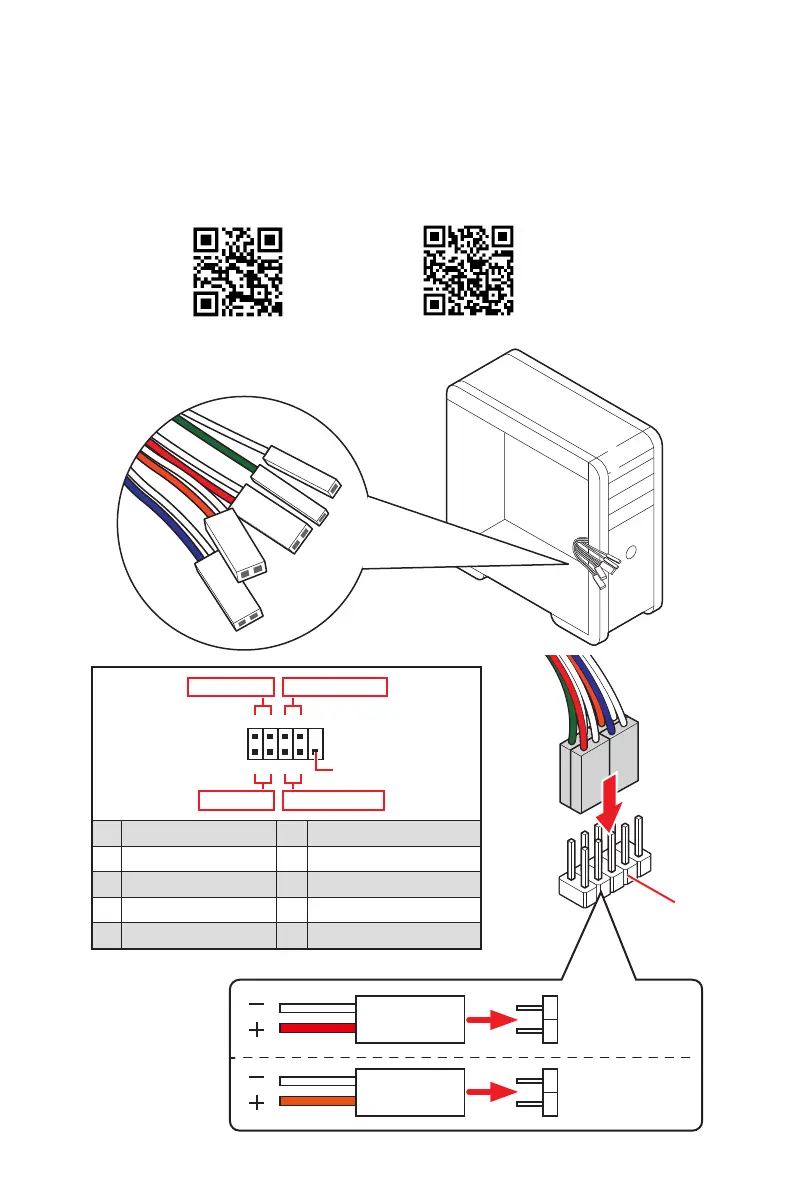

HDD LED
RESET SW
JFP1
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
