MSI MAG B550M BAZOOKA

29
Overview of Components
M2_1~2: M.2 Slots (Key M)
M2_1 M2_2
⚽
Video Demonstration
Watch the video to learn how to Install
M.2 module.
http://youtu.be/JCTFABytrYA
M2_1 slot installation

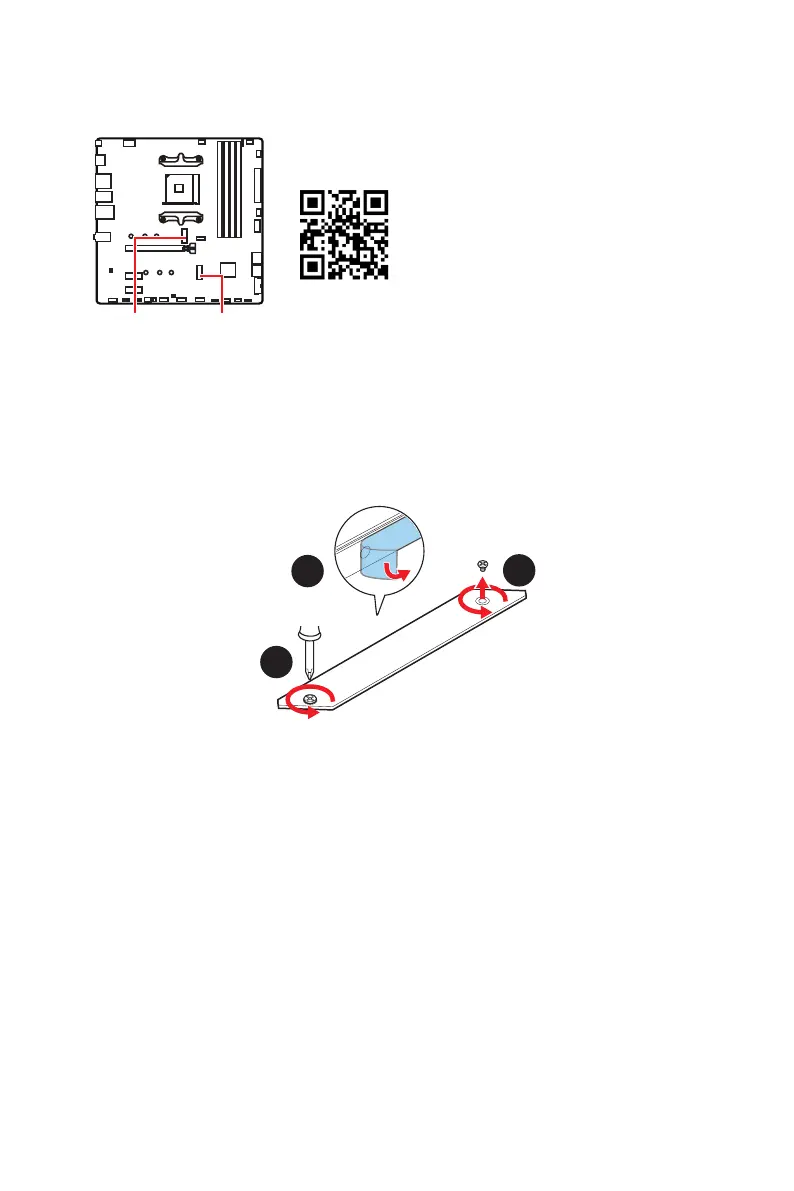

1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
1
1
2
