Overview of Components

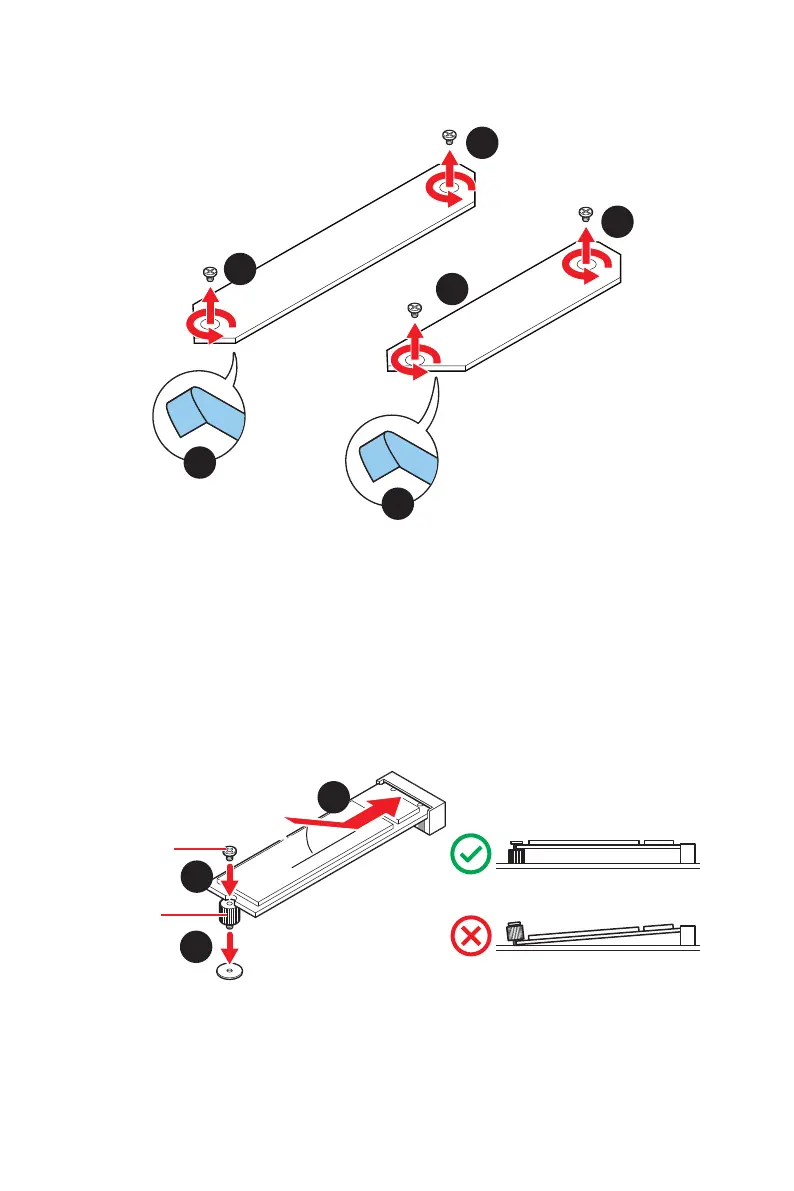

M.2 & SATA combination table
Slot Available SATA connectors
M2_1 PCIe (M2_1 slot is only available on 11th Gen Intel® CPU)
M2_2 PCIe SATA
M2_3 PCIe (M2_3 slot dose not support SATA)
SATA1
SATA2
SATA3
SATA4
SATA5
SATA6
(SATA: M.2 SATA SSD, PCIe
SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA1
SATA3
SATA6
SATA2
SATA4
SATA5
⚠
Important
∙
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
∙
SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
∙
SATA1 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
