31

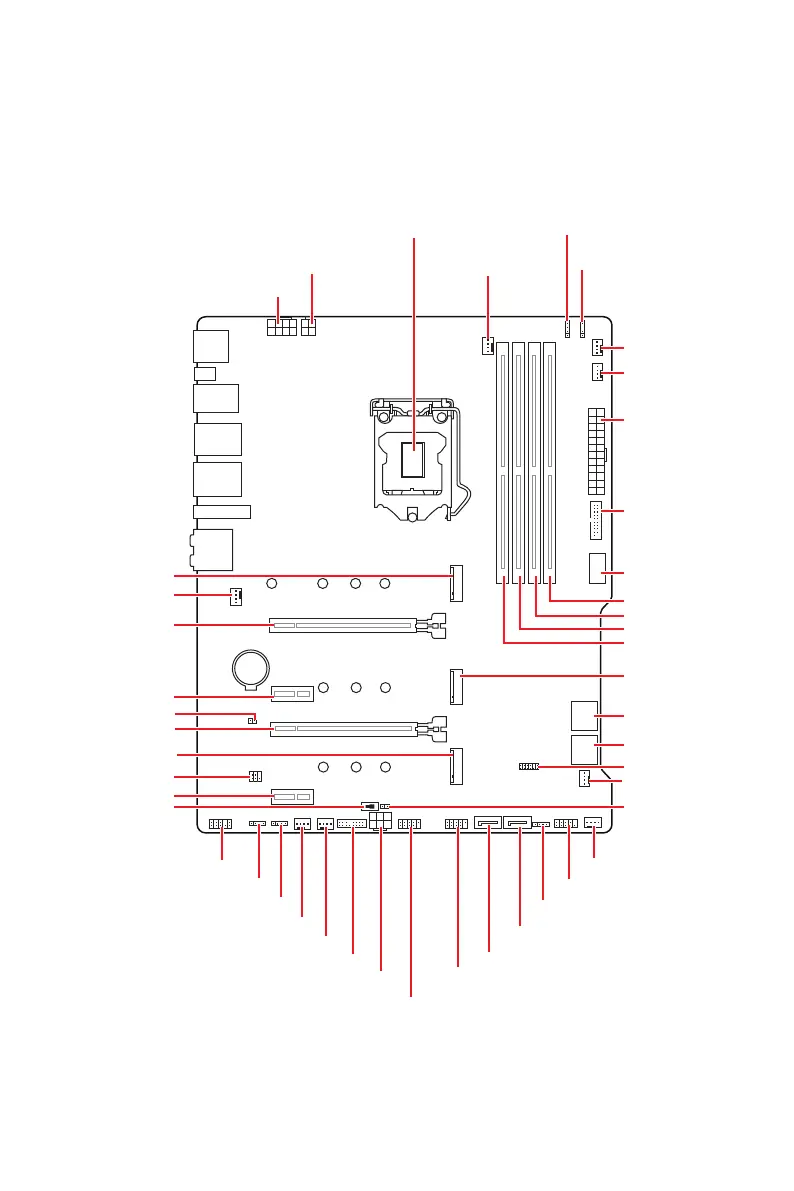

Overview of Components
Component Contents
Port Name Port Type Page
CPU_FAN1, PUMP_FAN1,
SYS_FAN1~5
Fan Connectors 42
CPU_PWR1~2, ATX_PWR1,
PCIE_PWR1
Power Connectors 39
CPU Socket LGA1200 CPU Socket 32
DIMM Slots Memory slots 33
JAUD1 Front Audio Connector 34
JBAT1 Clear CMOS (Reset BIOS) Jumper 44
JCI1 Chassis Intrusion Connector 43
JDASH1 Tuning Controller connector 44
JFP1, JFP2 Front Panel Connectors 38
JRAINBOW1~2 Addressable RGB LED connectors 46
JRGB1~2 RGB LED connectors 45
JTBT1 Thunderbolt Add-on Card Connector 41
JTPM1 TPM Module Connector 38
JUSB1~2 USB 2.0 Connectors 41
JUSB3 USB 3.2 Gen 1 Connector 40
JUSB4 USB 3.2 Gen 2 Type-C Connector 40
LED_SW1 EZ LED Control 47
M2_1~3 M.2 Slots (Key M) 35
PCI_E1~3 PCIe Expansion Slots 34
SATA1~6 SATA 6Gb/s Connectors 37
