Back Panel Connectors
1212
11 8822
99 1010
55
1111
664433 77

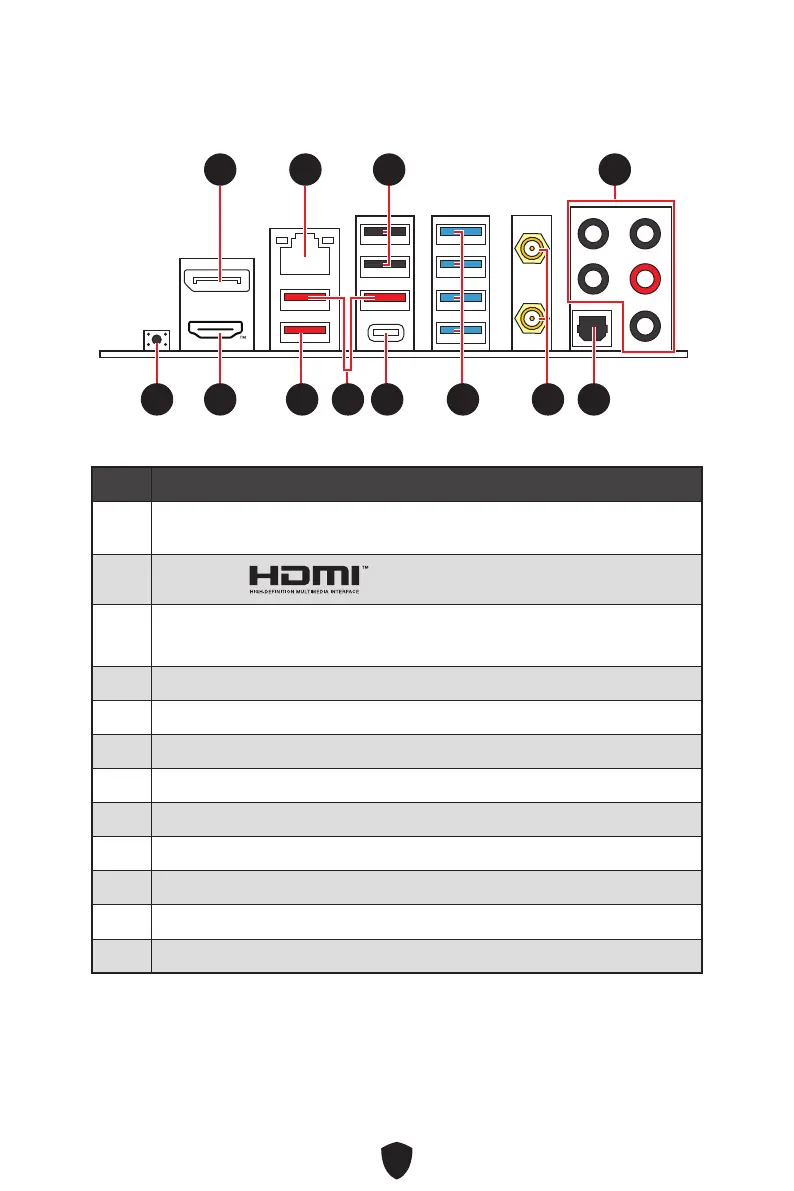

Item Description
1
Flash BIOS button - Please refer to page 56 for Updating BIOS with Flash
BIOS Button.
2
HDMI™ port
3
USB 3.2 Gen 2 10Gbps Type-A port (From CPU)
 Flash BIOS port
4 USB 3.2 Gen 2 10Gbps Type-A port (From CPU)
5 USB 3.2 Gen 2x2 20Gbps Type-C port (From B650 chipset)
6 USB 3.2 Gen 1 5Gbps Type-A ports (From B650 chipset)
7 Wi-Fi Antenna Connectors
8 Optical S/PDIF Out connector
9 DisplayPort
10 2.5 Gbps LAN port
11 USB 2.0 Type-A port (From B650 chipset)
12 Audio jacks
