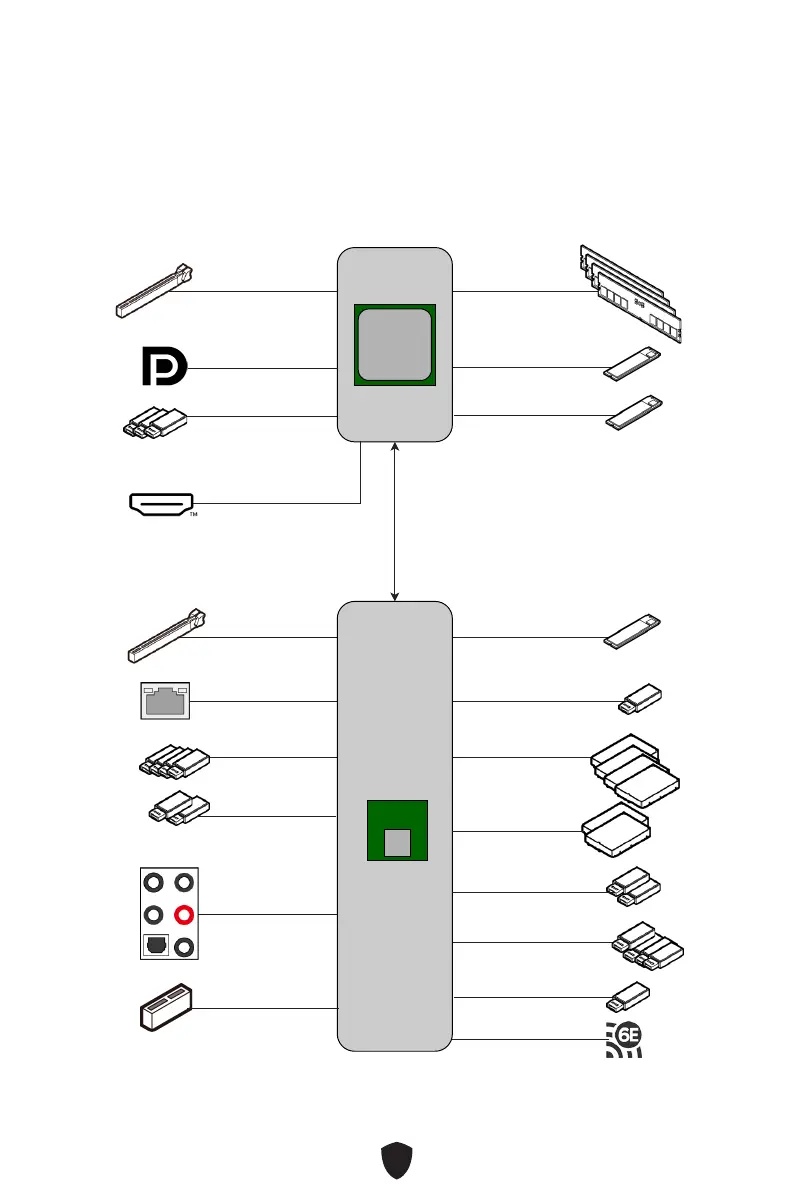

Block Diagram
MAG B650 TOMAHAWK WIFI
PCIe 4.0x16 PCI_E1
DDR5
DIMM A1/A2
DIMM B1/B2
GEN4 x4 M.2_1
(PCIe Only)
GEN4 x4 M.2_3
(PCIe Only)
USB3.2 Gen2x2 20Gbps
(Type-C)
USB3.2 Gen2 10Gbps
(Type-A)
SATA1_2 , SATA3_4
USB2.0
(Front Type-A)
CHIPSET_A
HD Audio
ALC4080
USB3.2 Gen1 5Gbps
(Front Type-A)
CPU
PCIE x4
GEN4 x4 M.2_2
(PCIe Only)
DP 1.4
(8K@60Hz)
HDMI 2.1HDR
(4K@60Hz)
Realtek8125BG
2.5Gbps LAN
PCIe 4.0x2 PCI_E2
USB2.0
(Rear Type-A)
USB3.2 Gen1 5Gbps
(Rear Type-A)
USB3.2 Gen2 10Gbps
(Front Type-C)
PCIe 3.0x1 PCI_E3
SATA_A1 , SATA_A2
WiFi 6E

MSI MAG B650 TOMAHAWK WIFI Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
ECC	No
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600 MHz
RAID levels	0, 1, 10
RAID support	Yes
Supported storage drive interfaces	M.2, SATA
Parallel processing technology support	-
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
LAN controller	Realtek RTL8125B
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC4080
Component for	PC
Product color	Black
Motherboard chipset	AMD B650
PC health monitoring	Fan
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 11 x64

Weight and Dimensions

Depth	243.84 mm
Width	304.8 mm
