Overview of Components
M2_1~2: M.2 Slots (Key M)
M2_1
M2_2

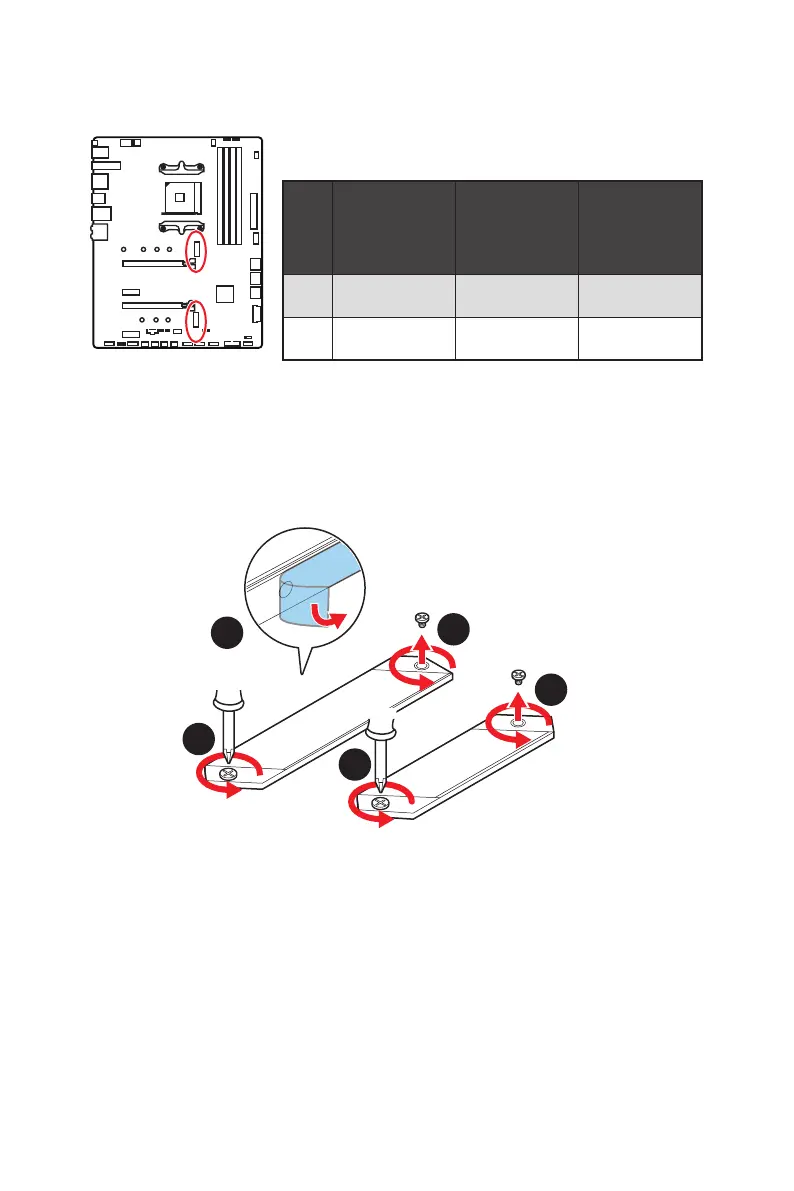

M.2 installation
1. Loosen the screws of M.2 heatsink.
2. Remove the M.2 hearsink and remove the protective film from the thermal pad.
1
1
1
1
2
The following table describes the relationship between the
M.2 slots and the PCIe bandwidth of the processors.
Slots
3rd Gen AMD
Ryzen™
2nd Gen AMD
Ryzen™
Ryzen™ with
Radeon™ Vega
Graphics and 2nd Gen
AMD Ryzen™ with
Radeon™ Graphics
M2_1
(CPU)
PCIe 4.0 x4 PCIe 3.0 x4 PCIe 3.0 x4
M2_2
(PCH)
PCIe 4.0 x4 PCIe 3.0 x4 PCIe 3.0 x4
