Hardware Installation
>>> 2.1
The following diagrams provide you a basic installation for
the MN54G, including how to install and remove the Mini-
card. The instruction below is suitable for most computers
with Mini-Card slot. For more information about the Mini-
Card module, please refer to your computer’s manual.
Installing the MN54G

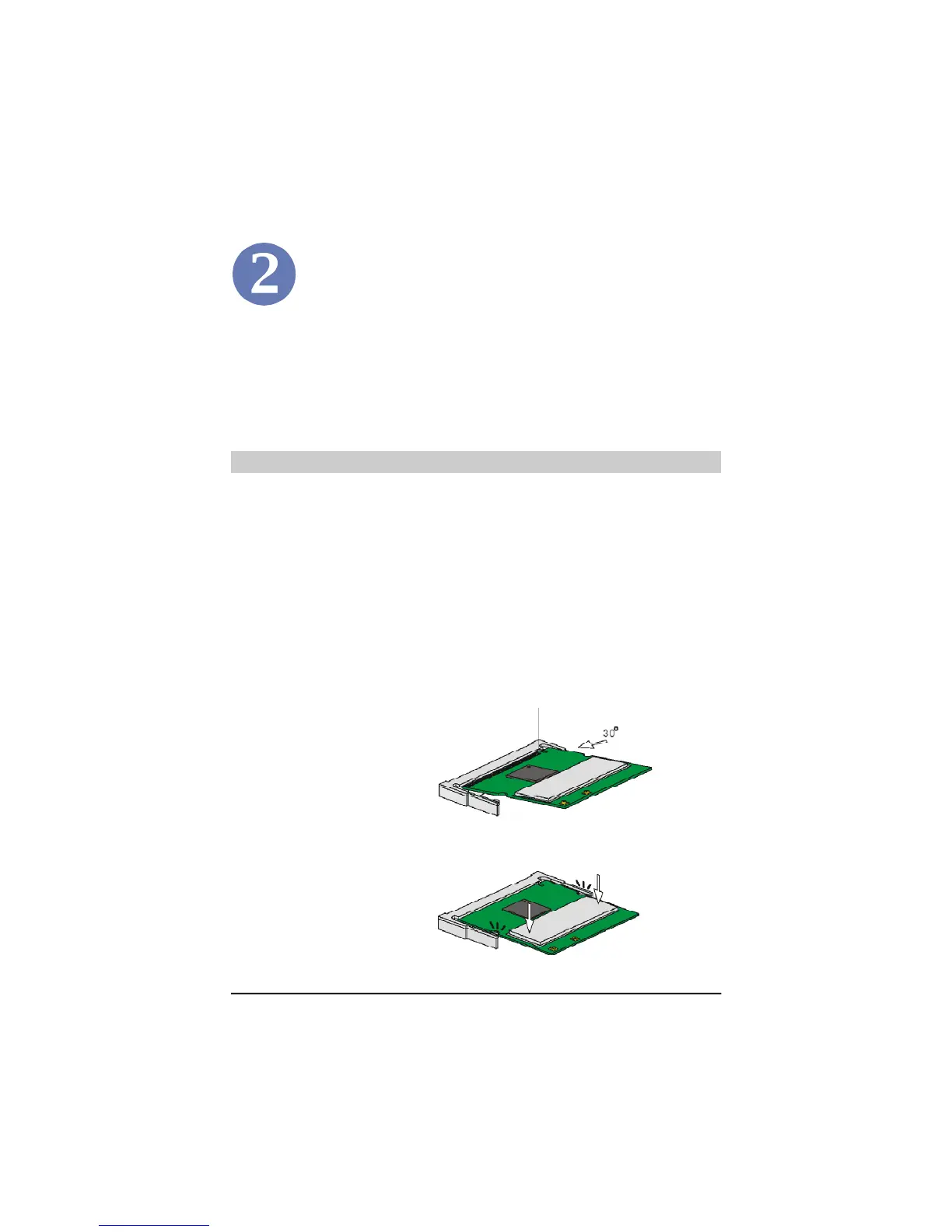

1.Locate the Mini-Card slot on the mainboard.
2.Place the MN54G over the Mini-Card slot (at an
angle of 30 degrees). Then, gently insert it into
the slot until the golden finger of the card gets
fully inserted.
3.Press down the card, and the retaining clips (on
two sides of the slot) will lock onto the notches of
the card.
Foolproof notch
To Next Page
