MSI MPG B560I - Installing M.2 Module

16
Overview of Components
3. 
4. Secure the M.2 SSD in place with the supplied M.2 8.5H screw.
30º30º
3
4
5. Put the M.2 SHIELD FROZR heatsink back in place and secure it.

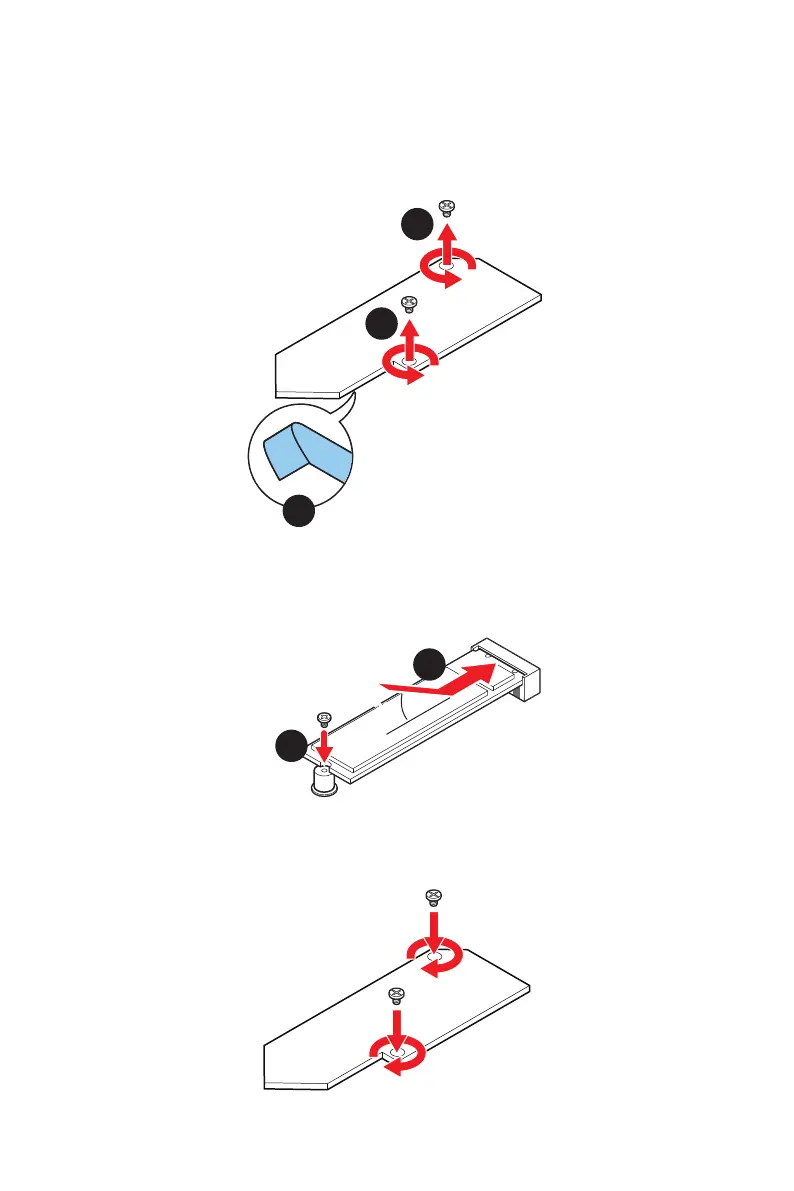

Installing M.2 module
1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
