MSI MPG X570S CARBON MAX WIFI

14

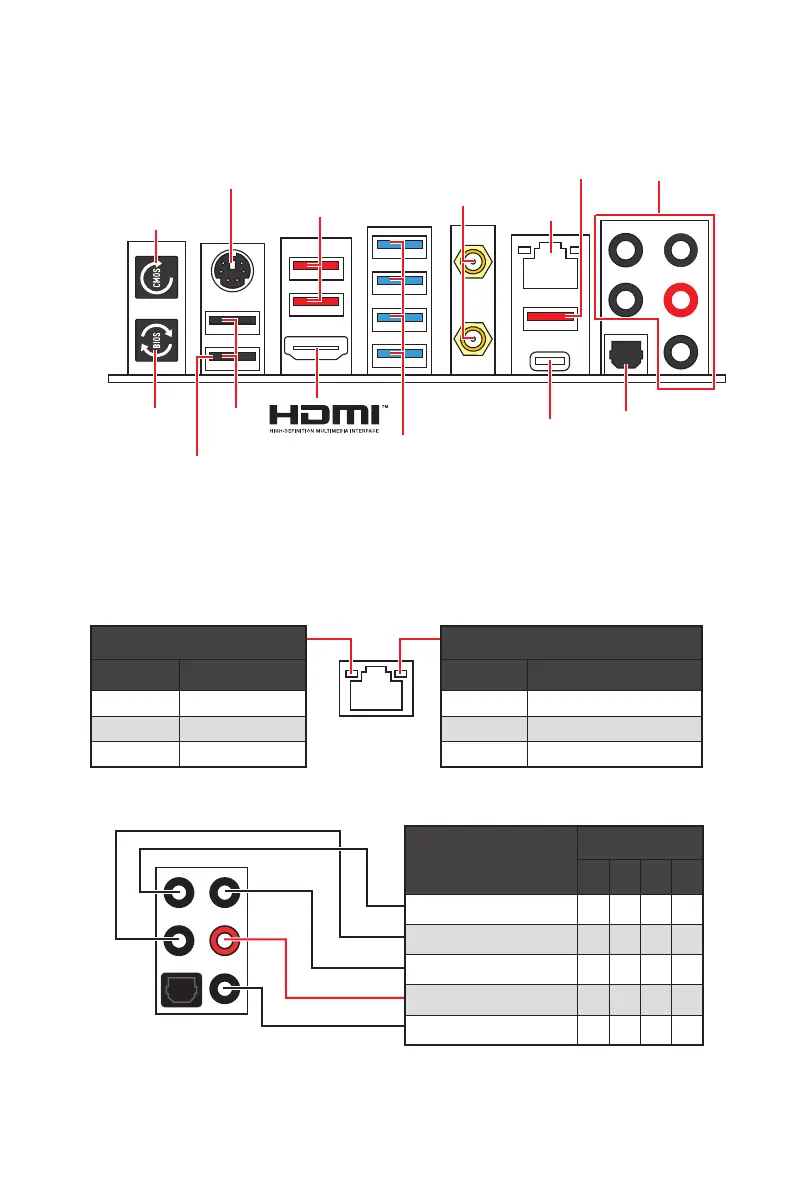

Rear I/O Panel
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps/ 1 Gbps
Orange 2.5 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Center/ Subwoofer Out ● ●
Rear Speaker Out ● ● ●
Line-In/ Side Speaker Out ●
Line-Out/ Front Speaker Out ● ● ● ●
Mic In
(●: connected, Blank: empty)
Rear I/O Panel
 Flash BIOS Port/ Button - Please refer to page 44 for Updating BIOS with Flash BIOS
Button.
USB 3.2
Gen 2
(10Gbps)
Type-A
USB 3.2
Gen 2
(10Gbps)
Type-A
USB 3.2
Gen 2
(10Gbps)
Type-C
2.5Gbps
LAN
Audio Ports
Optical
S/PDIF-Out
USB 2.0
Type-A
USB 3.2
Gen 1
(5Gbps)
Type-A
PS/2 Mouse/
Keyboard
Wi-Fi Antenna
connectors
Flash BIOS
Button
Flash BIOS
Port
Clear CMOS
button
