MSI MPG Z390 GAMING PLUS

19

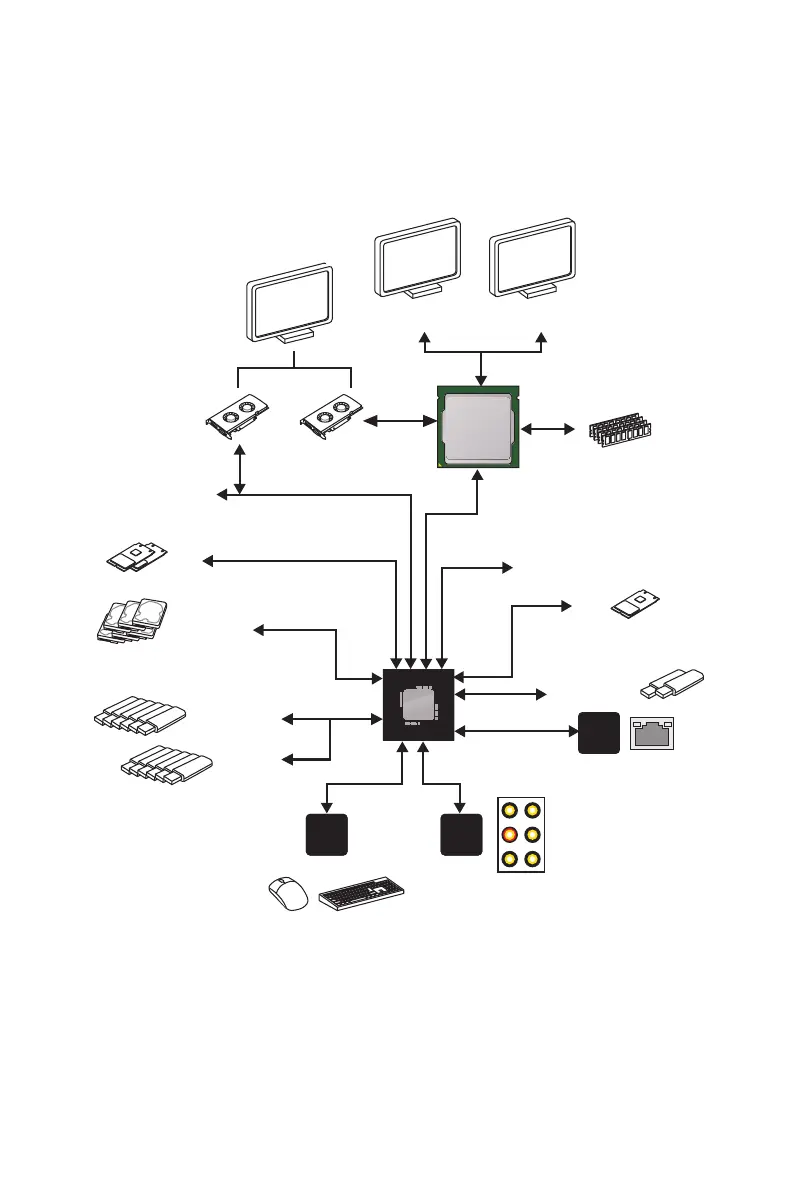

Block Diagram
Block Diagram
(Rear + Front)
2 Channel DDR4 Memory
2x USB 3.1 Gen2
PCIE Bus
PCIE Bus
DMI 3.0
PCH
Processor
NV6797
Super I/O
6x USB 3.1 Gen1
6x USB 2.0
Intel
I219-V
Audio Jacks
P/S2 Mouse / Keyboard
1x M.2
4x PCIe x1
6x SATA 6Gb/s
2x M.2
HDMI
DVI-D
PCIe Bus
PCIe Bus
(E Key for Intel wireless -AC
(CNVi ) module only)
Realtek
ALC892/
ALC897
