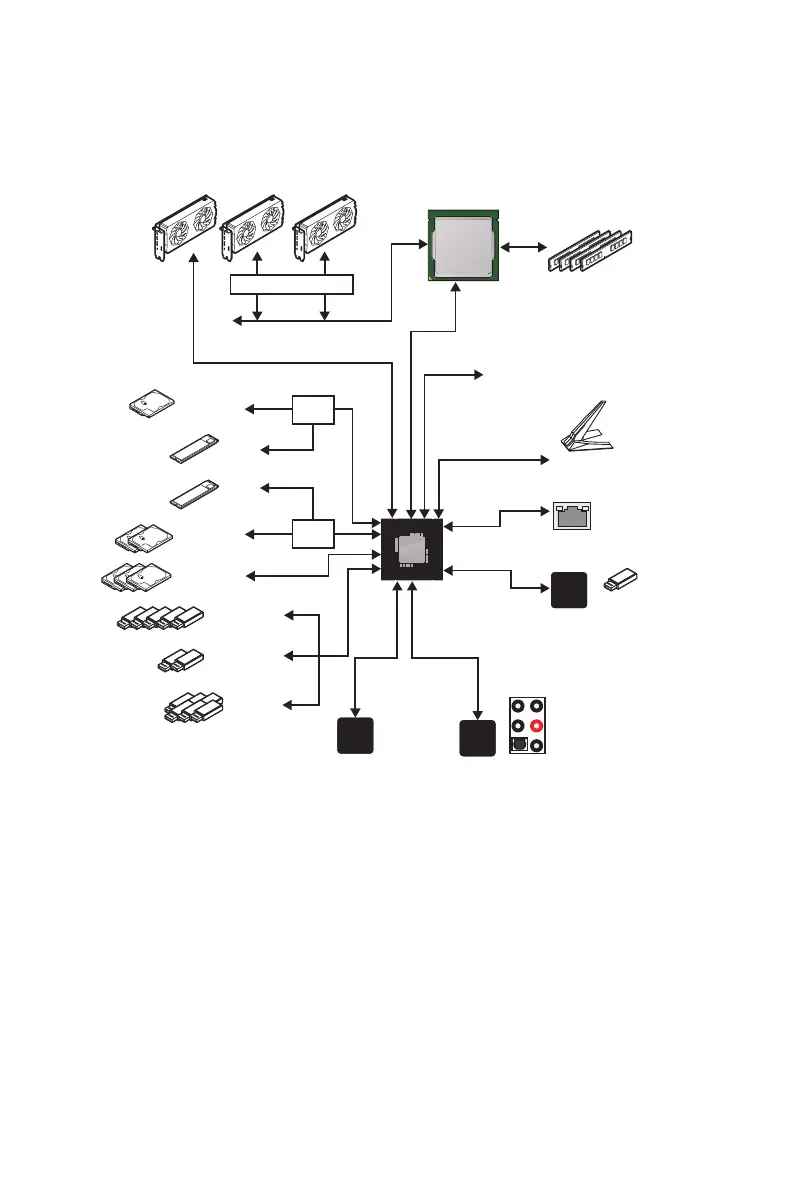

Block Diagram
Block Diagram
1x USB 3.2 Gen2 x 2
2 Channel DDR4 Memory
DMI 3.0
PCI Express Bus
PCH
Processor
NUVOTON
6687
Realtek
ALC1220P
ASMEDIA
3241
5x USB 3.2 Gen2
6x USB 2.0
2x PCIe x1 slot
JHL7540
Rear Audio Jacks
Switch
1x Realtek 2.5G LAN
1x Intel AX201 Wireless LAN
2x USB 3.2 Gen1
1x M.2
1x M.2
1x SATA 6Gb/s
Switch
Switch
2x SATA 6Gb/s
3x SATA 6Gb/s
