MSI MPG Z490M GAMING EDGE WIFI

22

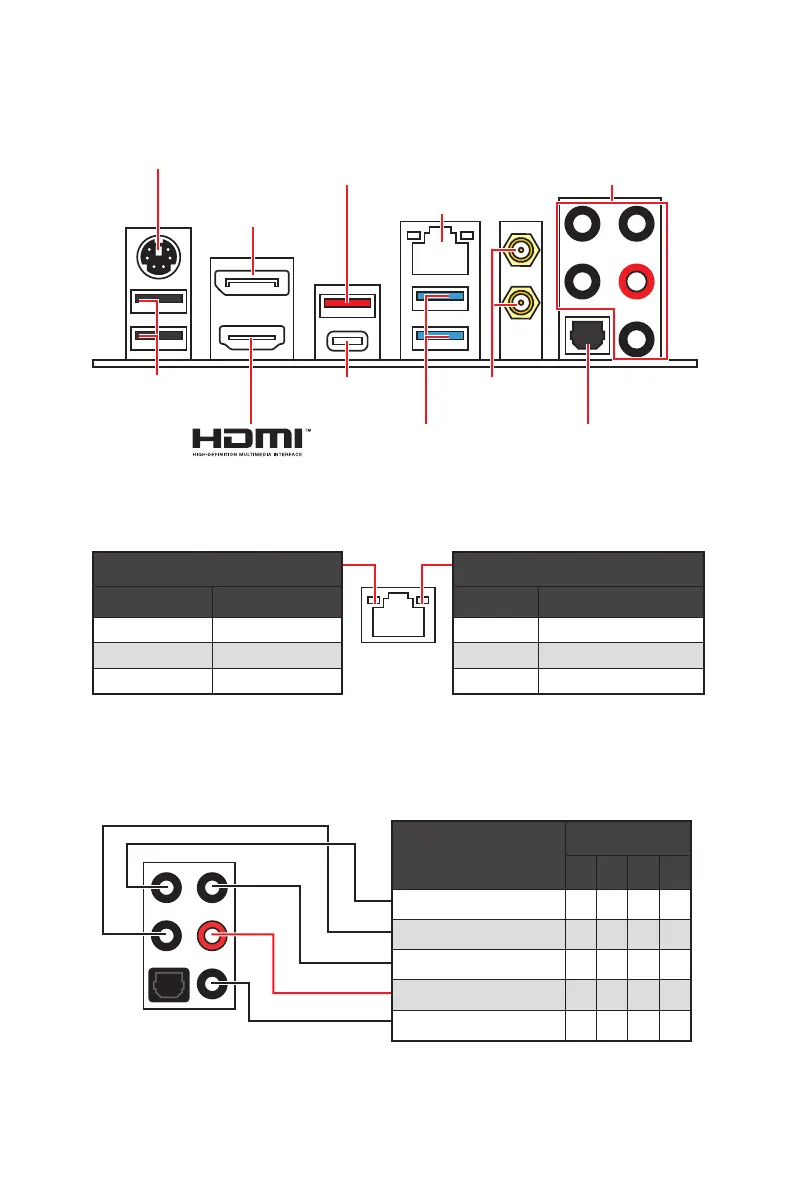

Rear I/O Panel
USB 3.2 Gen 2
(10Gbps) Type-C
Audio Ports Configuration
Rear I/O Panel
PS/2 Combo port
2.5 Gbps LAN
DisplayPort
USB 2.0 Type-A
Audio Ports
Optical
S/PDIF-Out
Wi-Fi Antenna
connectors
USB 3.2 Gen 2
(10Gbps) Type-A
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status 2.5 Gbps LAN
Off 10 Mbps
Green 100/1000 Mbps
Orange 2.5 Gbps
LAN Port LED Status Table
Audio Ports
Channel
2 4 6 8
Center/ Subwoofer Out  
Rear Speaker Out   
Line-In/ Side Speaker Out 
Line-Out/ Front Speaker Out    
Mic In
(: connected, Blank: empty)
USB 3.2 Gen 1
(5Gbps) Type-A
