32
Overview of Components
6. Put the M.2 SHIELD FROZR heatsink back in place and secure it.
6
30º30º
M.2 standoff
heatsink standoff
3
5
4
M.2 screw
6

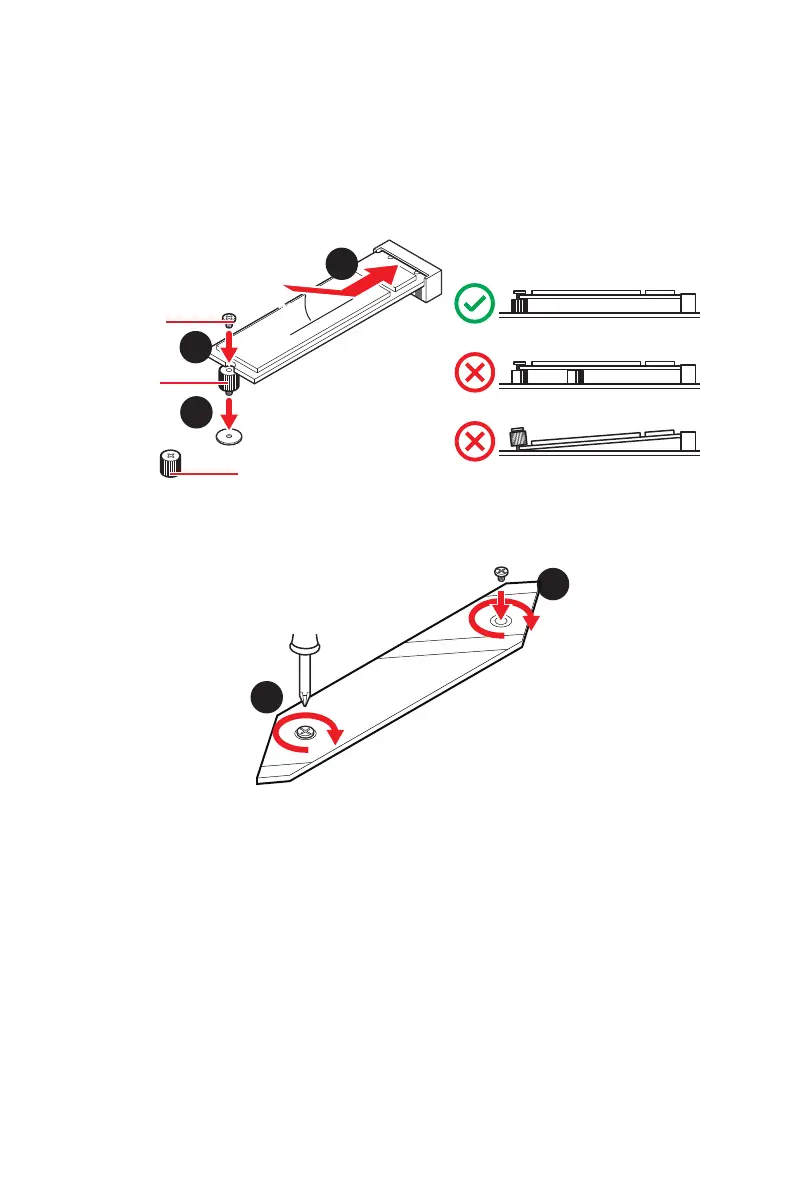

3. Move and fasten the M.2 standoff to the appropriate position for your M.2 SSD,
or remove the M.2 standoff if your M.2 SSD length is same as the length of M.2
heatsink to avoid damage to the M.2 SSD.
4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
5. Secure the M.2 SSD in place with the M.2 screw, or skip this step if you remove the
M.2 standoff in step 3.
M2_2 slot installation
Please follows the step3, 4 and 5 to install the M.2 SSD to the M2_2 slot.
