15
Panneau arrière Entrée/Sortie

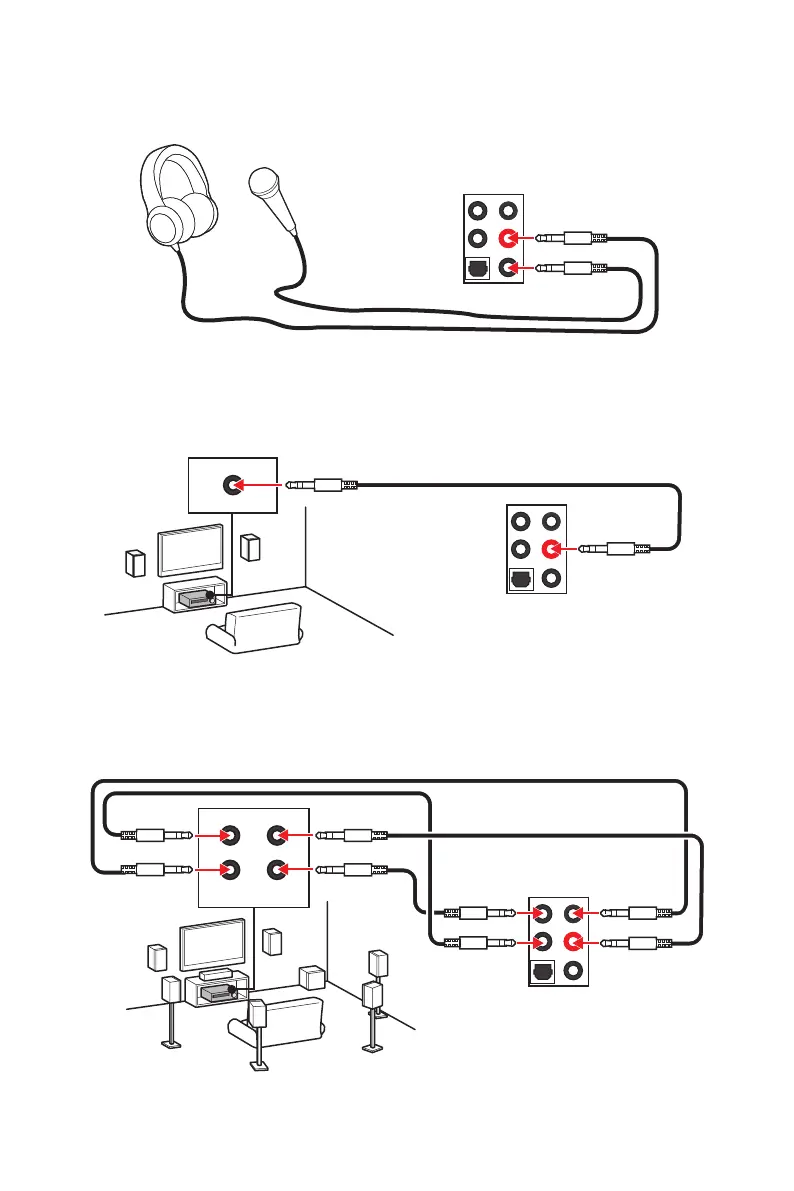

Illustration de l’utilisation des ports audio dédiés au casque et au microphone
Illustration de l’utilisation du port audio dédié aux haut-parleurs
Illustration de l’utilisation des ports audio dédiés aux haut-parleurs 7.1
AUDIO INPUT
AUDIO INPUT
Rear Front
Side Center/
Subwoofer
