MSI MPG Z690 CARBON WIFI User Manual

23
Overview of Components
30º30º

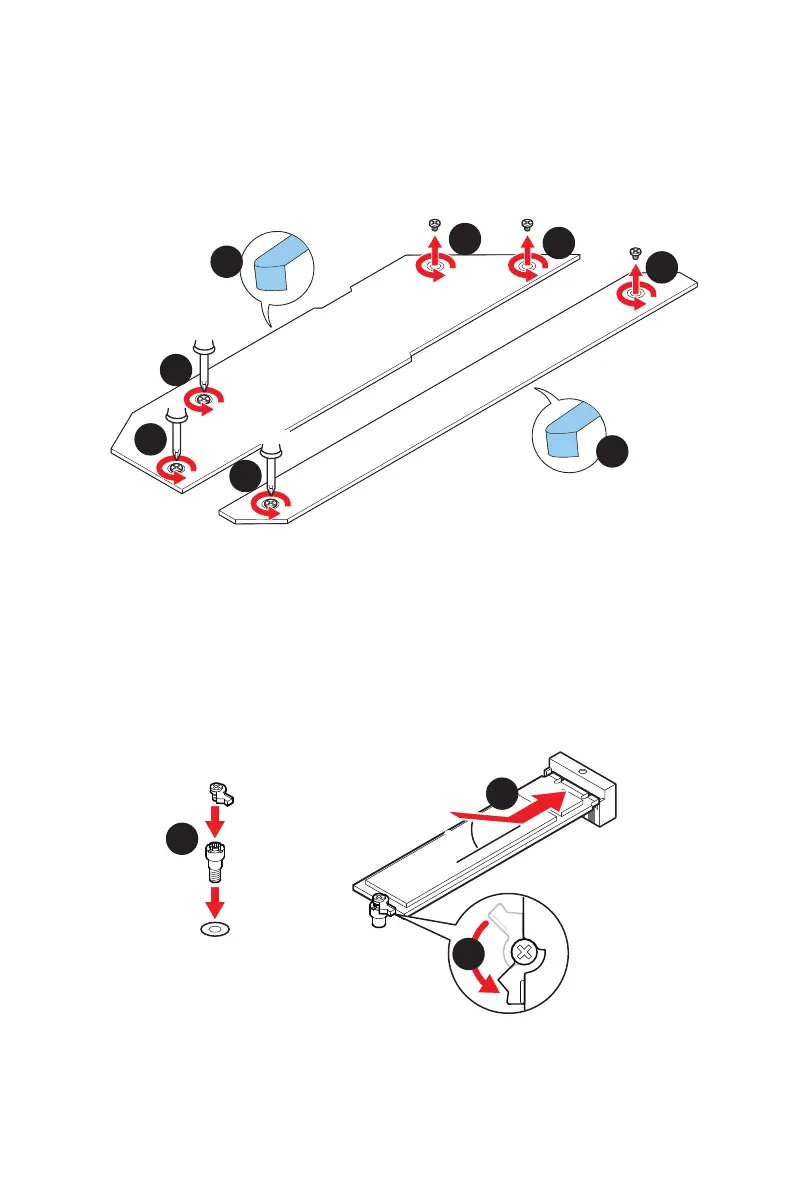

M2_2 ~5 slots installation
1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
2
2
1
1
1
1
1
1
M2_2
M2_3
M2_5
M2_4
3. If there is no EZ M.2 Clip installed, please install the supplied EZ M.2 Clip kit in the
M.2 slot according to your SSD length.
4. 
5. Rotate the EZ M.2 Clip to fix the M.2 SSD.
5
4
3

MSI MPG Z690 CARBON WIFI Specifications

General

Form Factor	atx
Chipset	z690
Chipset Compatibility	intel
Processor Socket	socket lga 1700
Processor Compatibility	intel, intel core i9, intel core i7, intel core i5, intel core i3
RAID	raid 0, raid 1, raid 5
Multi-GPU	crossfire
Memory Type	ddr5
Memory Speeds	6666
SATA Connectors	6x sata 6g
Wireless Standard	ax
Wireless Networking Standard	wi-fi 6e
Wireless Connectivity	bluetooth, wi-fi
USB Ports	6 x usb-a 3.2, 1 x usb-c 3.2, 4 x usb-a 2.0
Audio Ports	1x front audio (jaud)
Audio Channels	8
M.2 Slots	5

Weight and Dimensions

Width	243.84 millimeters
