MS-6119 ATX BX2 Mainboard
MICRO-STAR INTERNATIONAL COMPANY LTD.
Specification & User’s Guide

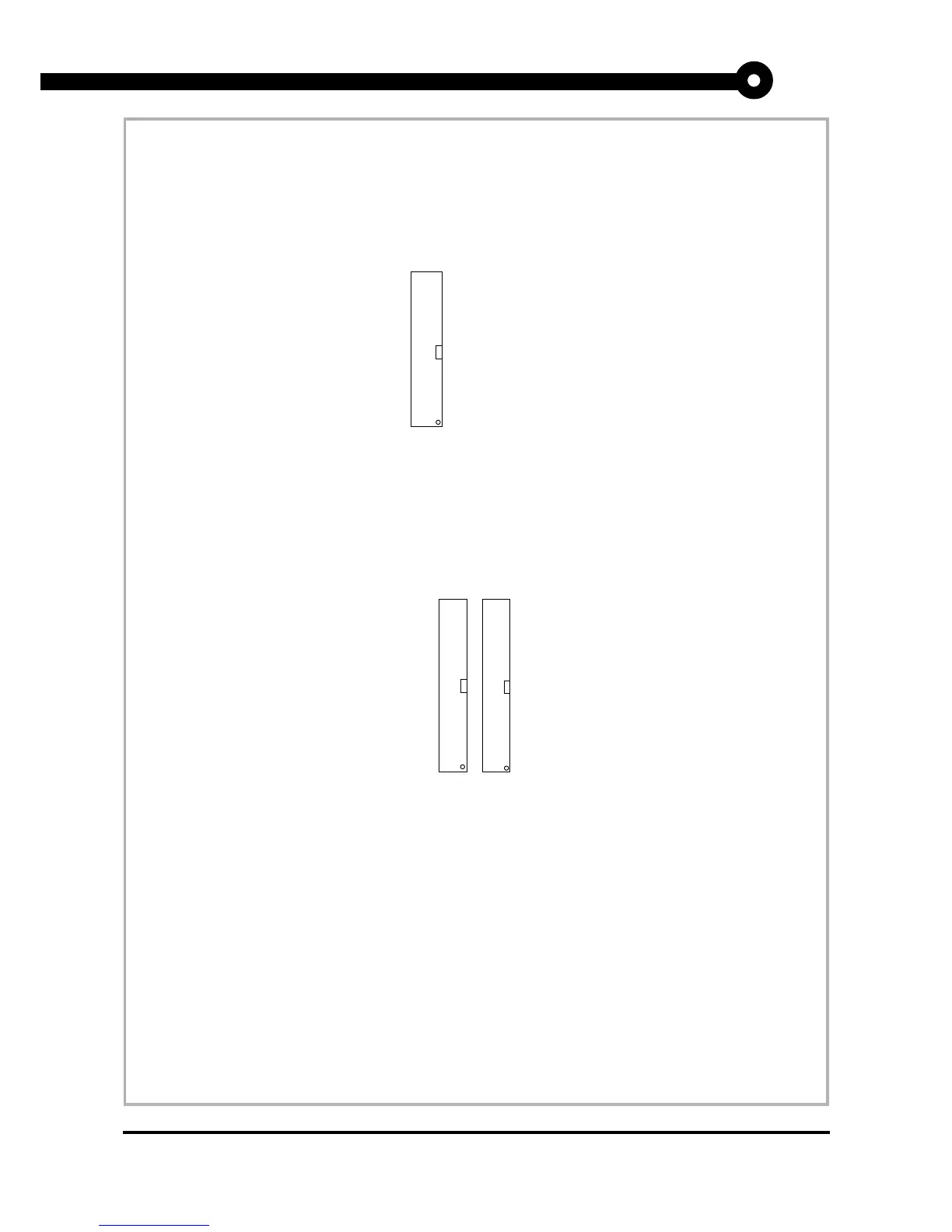

Floppy Disk Connector: FDC
The mainboard also provides a standard floppy disk connector FDC that supports 360K, 720K, 1.2M, 1.44M
and 2.88M floppy disk types. This connector supports the provided floppy drive ribbon cable.
FDC
1
Connectors
Hard Disk Connectors: IDE1 & IDE2
The mainboard has a 32-bit Enhanced PCI IDE Controller that provides PIO mode 0~4, Bus Master, and Ultra
DMA/33 function. It has two HDD connectors IDE1 (primary) and IDE2 (secondary). You can connect up to
four hard disk drives, CD-ROM, 120MB Floppy (reserved for future BIOS) and other devices to IDE1 and
IDE2. These connectors support the provided IDE hard disk cable.
IDE1(Primary IDE Connector)
The first hard drive should always be connected to IDE1. IDE1 can connect a Master and a Slave drive. You
must configure second hard drive to Slave mode by setting the jumper accordingly.
IDE2(Secondary IDE Connector)
IDE2 can also connect a Master and a Slave drive.
Primary IDE Connector
Secondary IDE Connector
1
1
