MS-6570 ATX Mainboard

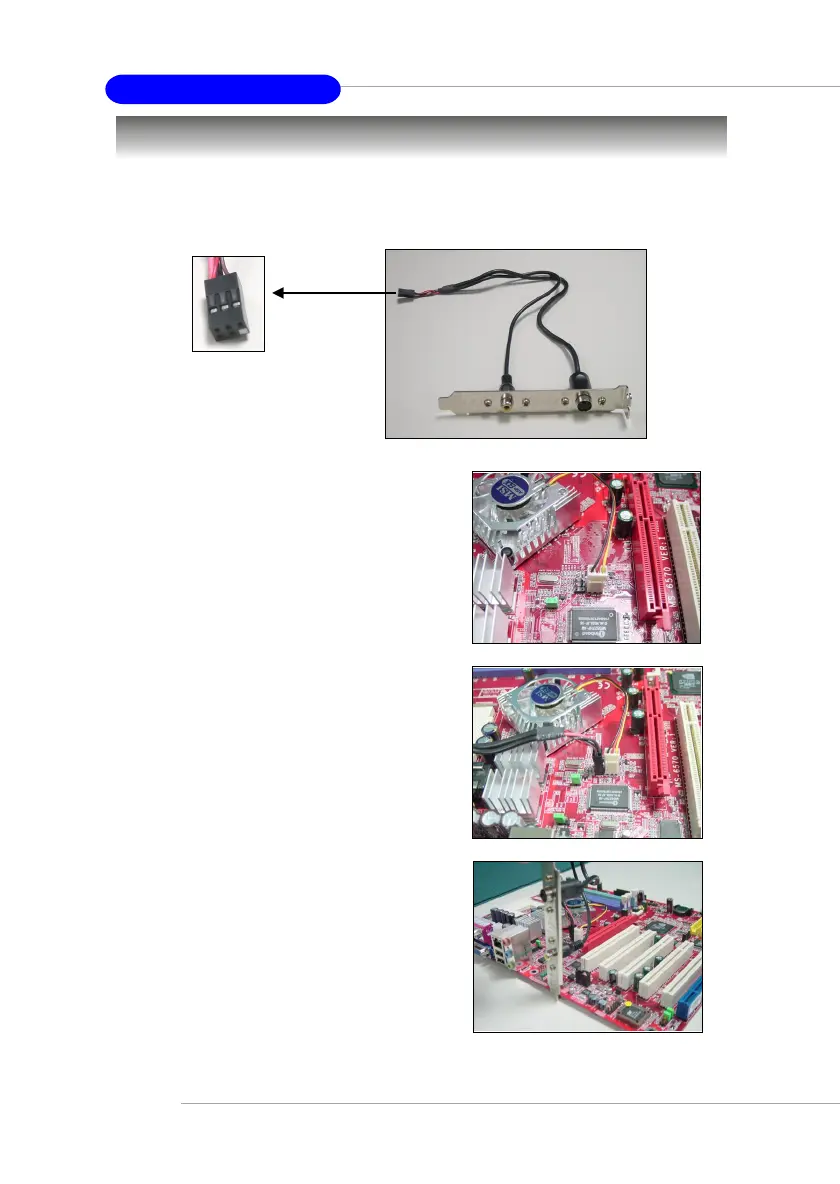

Installing the TV-Out Bracket
3. Connect the TV-Out bracket to the
connector. Align the foolproof
design with the pin layout of the
connector to avoid mis-inserting.
1. Take out the TV-Out bracket.
2. Locate the TV-out connector (JTV1)
on the mainboard.
4. Place the TV-Out bracket into the
first slot of your system case.
Foolproof
design
(S-Video)
(RCA Composite)
