Hardware Setup
2-19

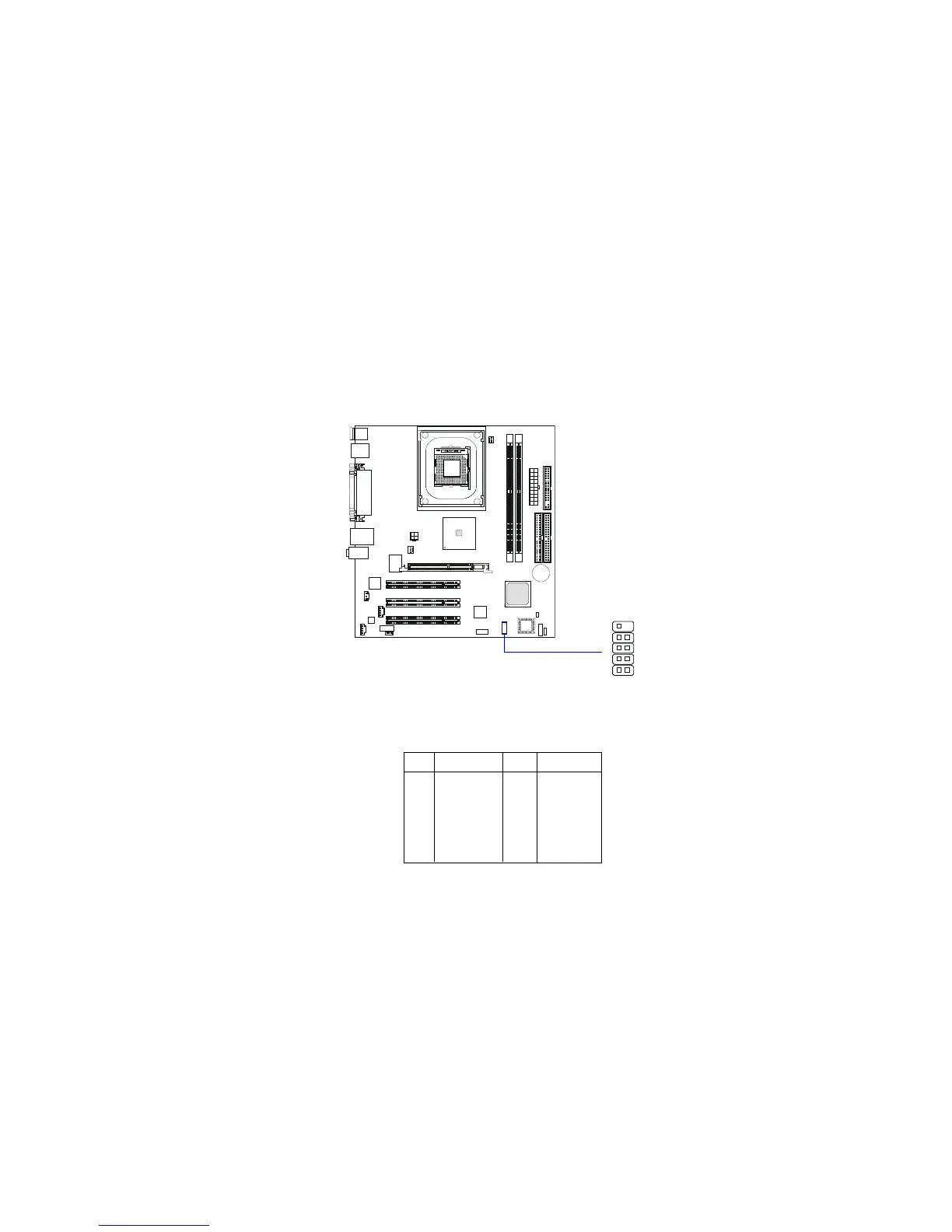

Front USB Connector: JUSB1
The mainboard provides one USB 2.0 pinheader for connection to USB
devices. USB 2.0 technology increases data transfer rate up to a maximum
throughput of 480Mbps, which is 40 times faster than USB 1.1, and is ideal for
connecting high-speed USB interface peripherals such as USB HDD, digital
cameras, MP3 players, printers, modems and the like.
Pin Description Pin Description
1 VCC 2 VCC
3 USB P4- 4 USB P5-
5 USB P4+ 6 USB P5+
7 GND 8 GND
9 KEY 10 NC
Pin Definition
JUSB1
1
9
2
10
To Next Page
