MSI MS-6577 - Front Panel Connector

Chapter 2
2-18
Front Panel Connector: JFP1
The mainboard provides one front panel connector for electrical connec-
tion to the front panel switches and LEDs. The JFP1 is compliant with Intel
®
Front Panel I/O Connectivity Design Guide.
PIN SIGNAL DESCRIPTION
1 HD_LED_P Hard disk LED pull-up
2 FP PWR/SLP MSG LED pull-up
3 HD_LED_N Hard disk active LED
4 FP PWR/SLP MSG LED pull-up
5 RST_SW_N Reset Switch low reference pull-down to GND
6 PWR_SW_P Power Switch high reference pull-up
7 RST_SW_P Reset Switch high reference pull-up
8 PWR_SW_N Power Switch low reference pull-down to GND
9 N C No connection

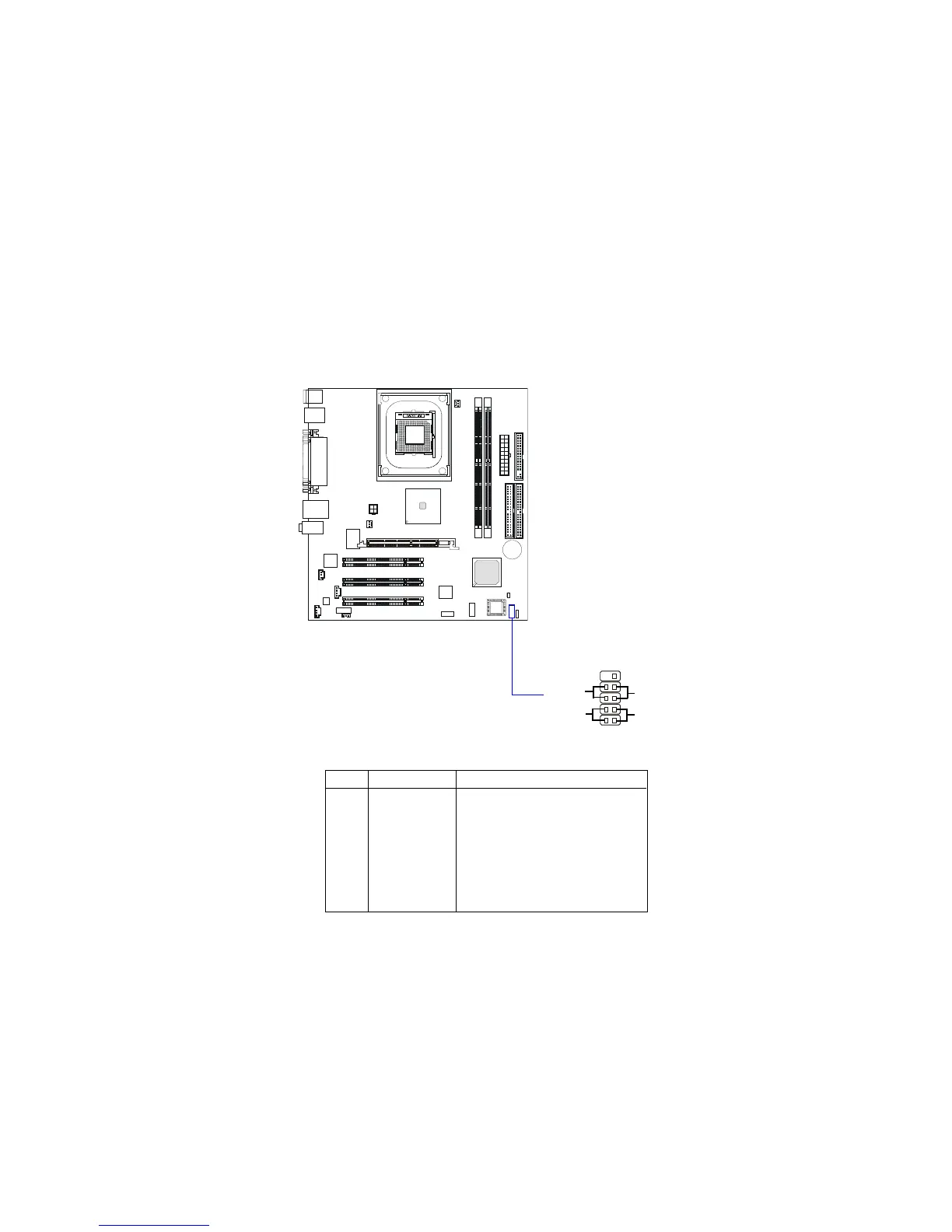

Pin Definition
12
910
JFP1
HDD
LED
Reset
Switch
Power
LED
Power
Switch
+
