2-14
MS-7320 Mainboard

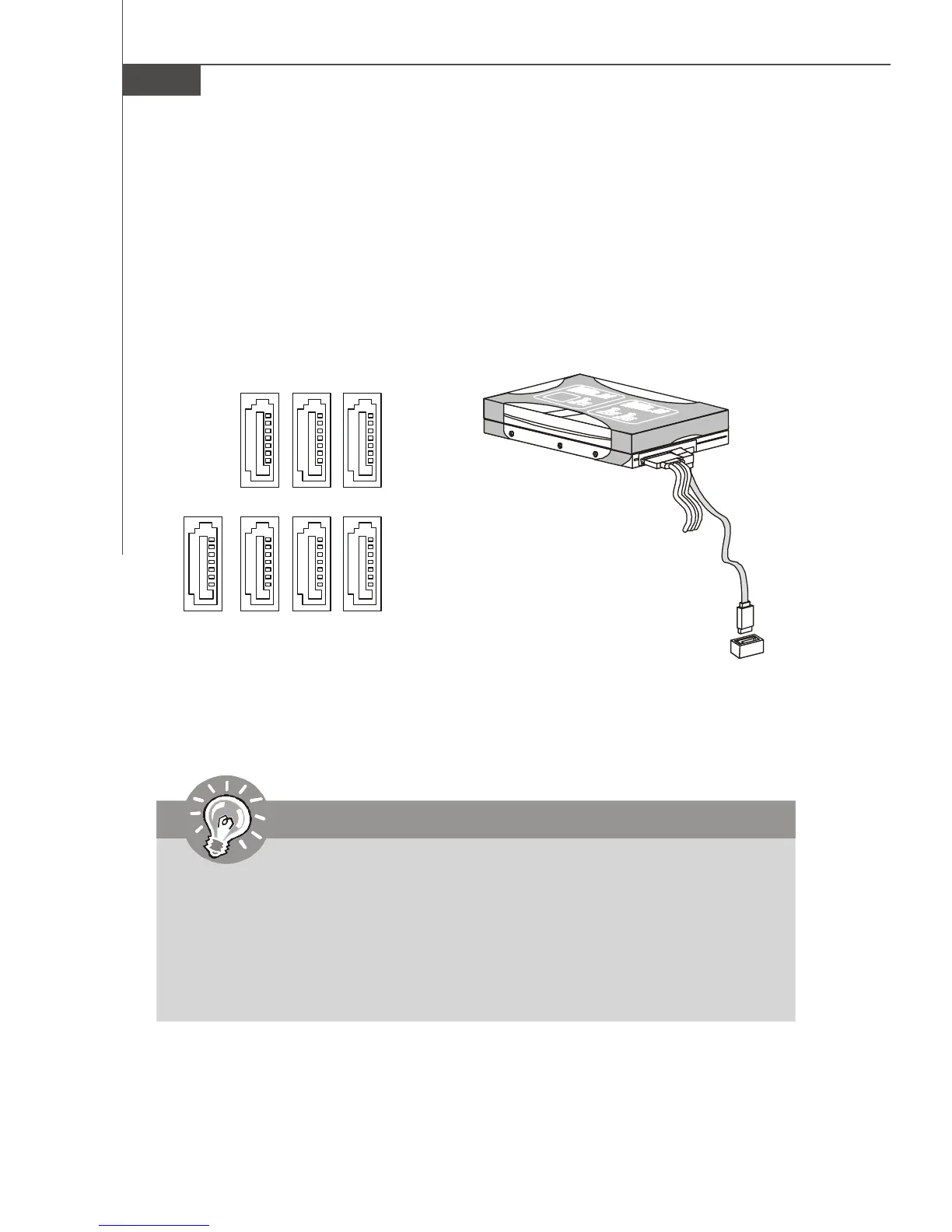

Serial ATA Connector: SATA1/ SATA2/ SATA3/ SATA4/ SATA5/
SATA6/ SATA7 (SATA6/ 7 is controlled by Sil4723)
This connector is a high-speed Serial ATA interface port. Each connector can con-
nect to one Serial ATA device.
SATA4 SATA3SATA5
SATA7SATA6SATA1SATA2
Important
1. Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
data loss may occur during transmission.
2. Note that SATA6 and SATA7 support RAID function only. Please install two
hard drives to SATA7 and SATA6 for RAID function.
3. The SATA6 and SATA7 are controlled by silicon image chip that supports
RAID 0/ RAID 1 mode by hardware setting. Please refer to the following
JP1/JP2 illustration for details.
To Next Page
