MS-7320 Mainboard
A-2
Hardware Setup
Connecting the Speakers
When you have set the Multi-Channel Audio Function mode properly in the software
utility, connect your speakers to the correct phone jacks in accordance with the
setting in software utility.

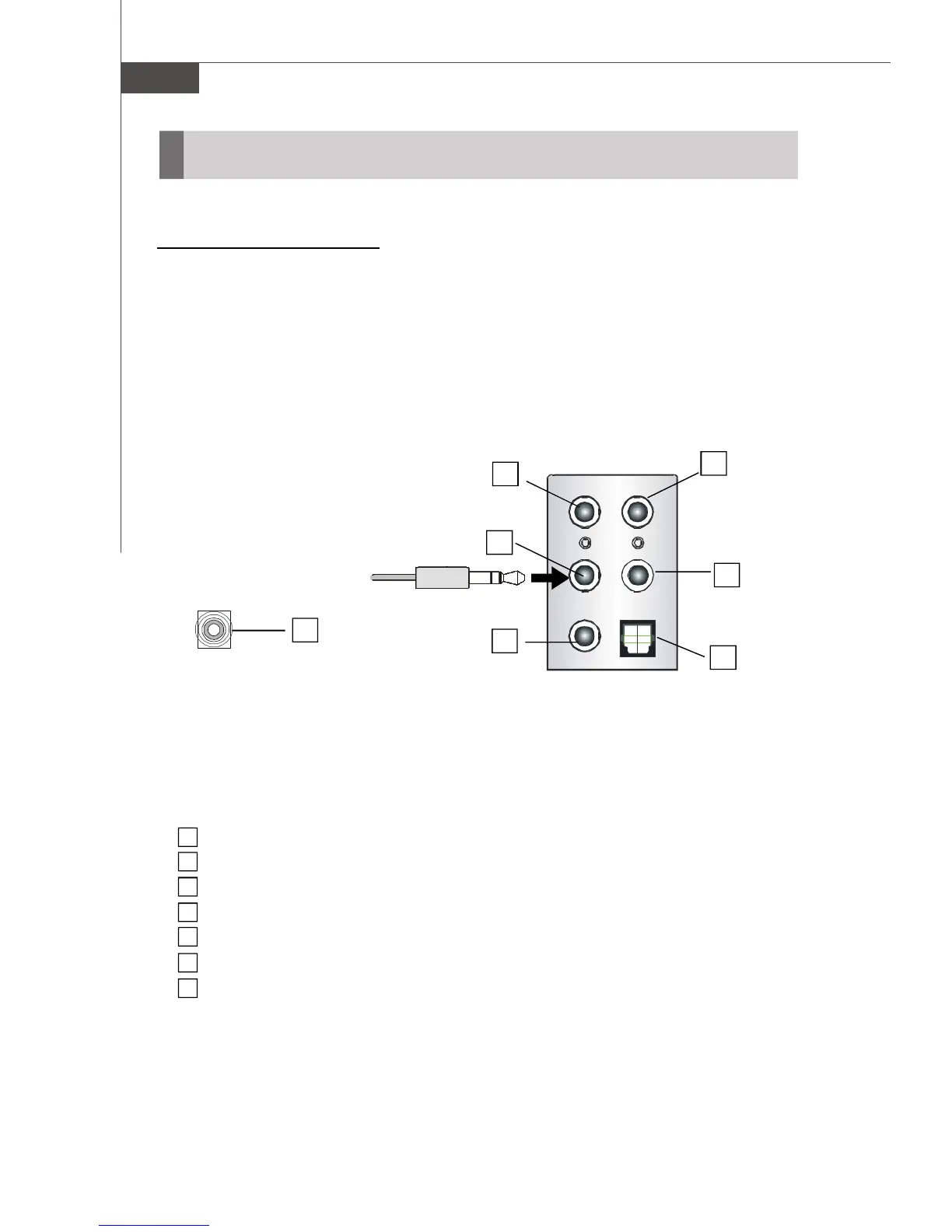

n 2-Channel Mode for Stereo-Speaker Output
Refer to the following diagram and caption for the function of each phone jack on the
back panel when 2-Channel Mode is selected.
1 No function
2 Line Out (Front channels)
3 MIC & Line-In
4 No function
5 No function
6 S/PDIF Out-Optical
7 S/PDIF Out-Coaxial
Back Panel
3
1
2
6
4
5
7
To Next Page
