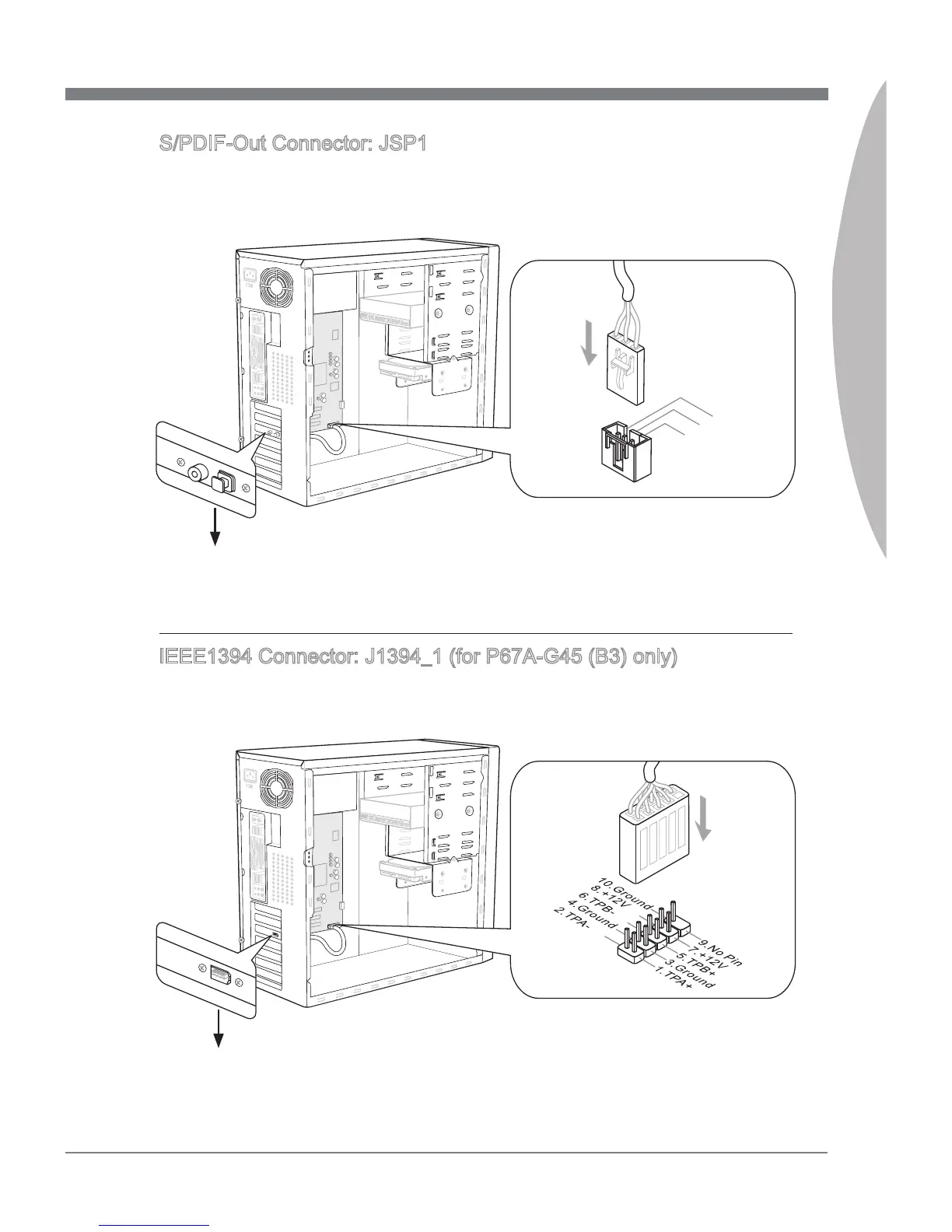

S/PDIF-Out Connector: JSP1
Ths connector s used to connect S/PDIF (Sony & Phlps Dgtal Interconnect Format)
nterface for dgtal audo transmsson.
11
5V
3.VC
C
2.SPDIF
1
.Ground
* The MB layout n ths 󰘰gure s for reference only.
S/PDIF-Out Bracket (optonal)
IEEE1394 Connector: J1394_1 (for P67A-G45 (B3) only)
Ths connector allows you to connect the IEEE1394 devce va an optonal IEEE1394
bracket.
* The MB layout n ths 󰘰gure s for reference only.
1394 Bracket (optonal)
