MSI PRO B660-A - Page 17

15

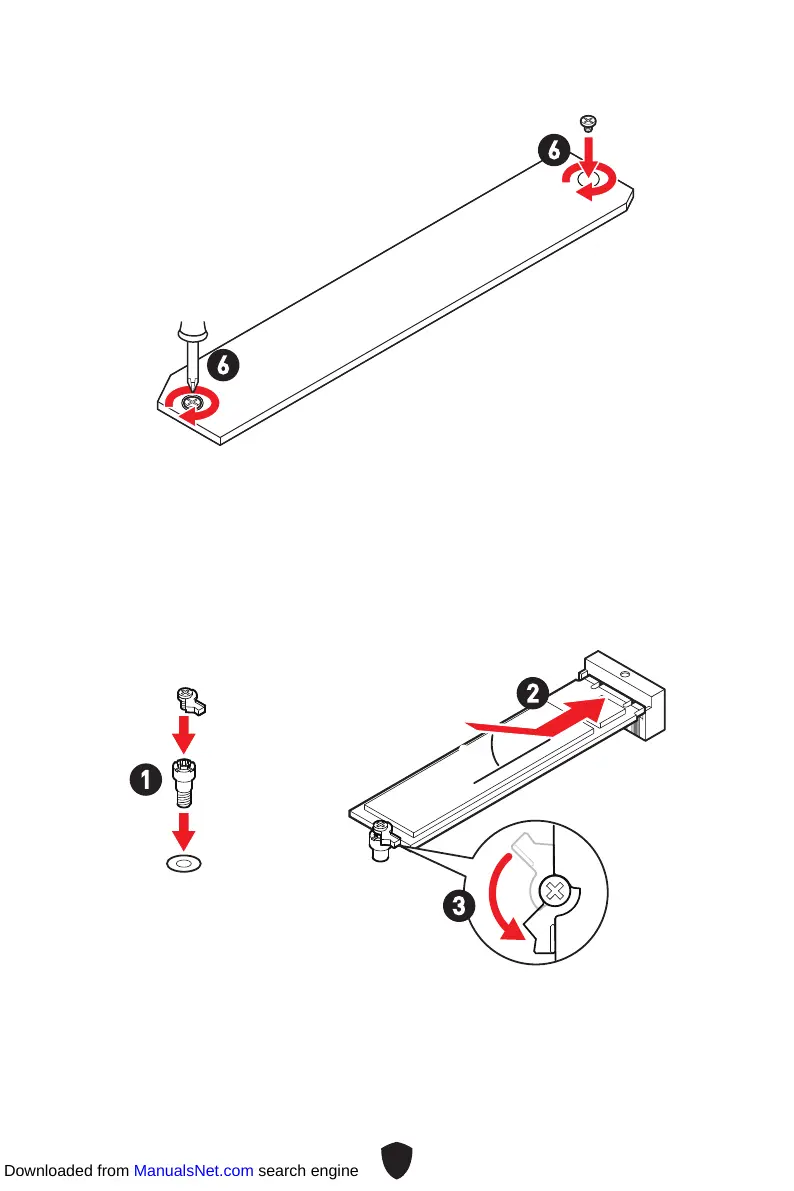

For M2_2 slot
1. Please install the supplied EZ M.2 Clip kit in the M.2 slot according to your SSD
length.
2. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
3. Rotate the EZ M.2 Clip to fix the M.2 SSD.
30º30º
1
3
2
6. Put the M.2 SHIELD FROZR heatsink back in place and secure it.
6
6
