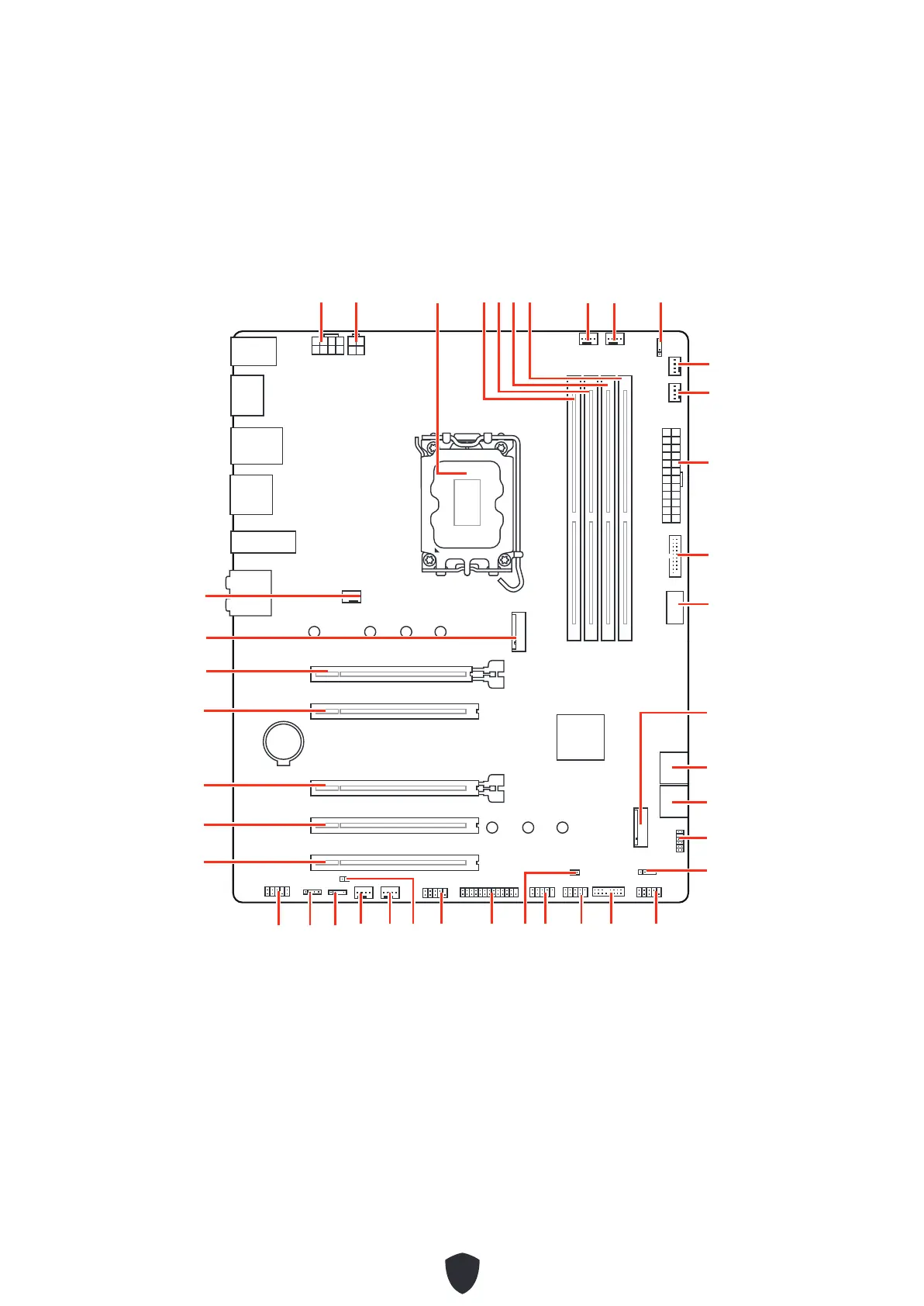

Overview of Components
BAT 1
SATA▼5▲6
JUSB1
M2_2
JUSB2
ATX_PWR1
SYS_FAN1
SYS_FAN2
CPU_FAN1
PUMP_FAN1
JARGB_V2_2
DIMMB2
SATA▼7▲8
JTPM1
Processor
Socket
CPU_PWR1 CPU_PWR2
JFP1 JBAT1 JLPT1 JUSB4 JUSB3 JCOM1 SYS_FAN4 SYS_FAN3 JARGB_V2_1 JAUD1
PCI_E3
PCI_E4
PCI_E5
PCI_E2
M2_1
PCI_E1
JCI1
SYS_FAN5
JRGB1 JTBT1
JFP2
DIMMB1
DIMMA2 DIMMA1

MSI PRO B760-P WIFI Specifications

General

Processor socket	LGA 1700
Processor manufacturer	Intel
Compatible processor series	Intel® Pentium® Gold
Maximum internal memory supported by processor	192 GB
Memory channels	Dual-channel
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported memory clock speed (max)	6800 MHz
Ethernet LAN	Yes
LAN controller	Realtek RTL8111H
Wi-Fi standards	802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Number of SATA III connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
HDMI version	1.4
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA
Package depth	304.8 mm
Package width	243.84 mm
Cables included	SATA
BIOS type	UEFI AMI
ACPI version	6.4
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	3.5
Audio chip	Realtek ALC897
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel B760
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
