Thank you for choosing the A88XM-E35 V2/ A88XM-P33 V2/ A78M-E35 V2 Series
(MS-7721 v6.X) Micro-ATX motherboards. The A88XM-E35 V2/ A88XM-P33 V2/
A78M-E35 V2 Series motherboards are based on AMD A88X/ A78 chipset for
optimal system e󰘲ciency. Designed to 󰘰t the advanced AMD FM2+/ FM2 processor,
the A88XM-E35 V2/ A88XM-P33 V2/ A78M-E35 V2 Series motherboards deliver a
high performance and professional desktop platform solution.

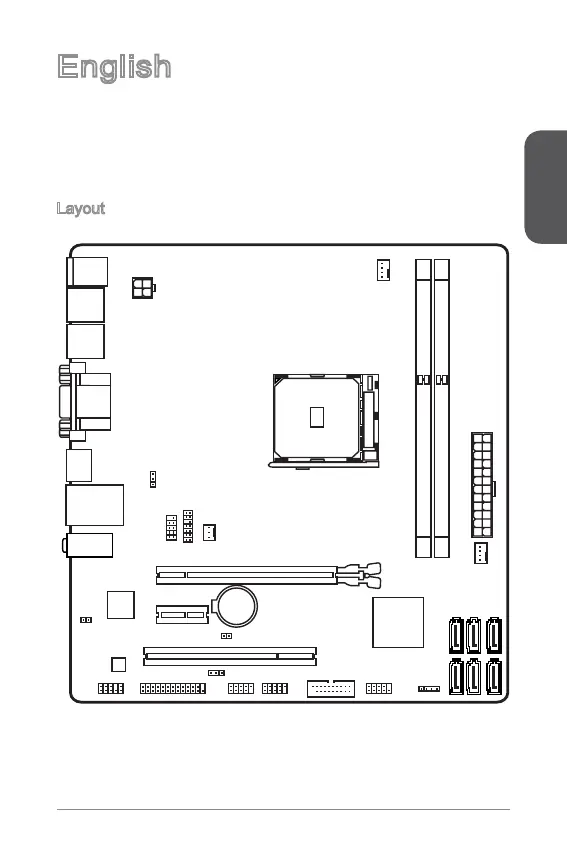

Layout
BAT1
T:Line-In
M:Line- Out
B:MIC-Int
Top: LAN Jack
Bottom: USB3.0 ports
Top : mouse port
Bottom: keyboard port
JAUD1
JBAT1
JCI1
JUSB_PW1
JUSB_PW2
PCI_E1
PCI_E2
PCI1
JUSB2 JUSB1
JUSB3
JFP1
JFP2
SATA3 SATA6
SATA2
SATA5
SATA1 SATA4
SYSFAN1
SYSFAN2
CPUFAN
JPWR2
JPWR1
JTPM1
JCOM1
DIMM1
DIMM2
USB2.0 ports
USB2.0 ports
HDMI port
JLPT1
Top: VGA Port
Bottom: DV PortI-D
