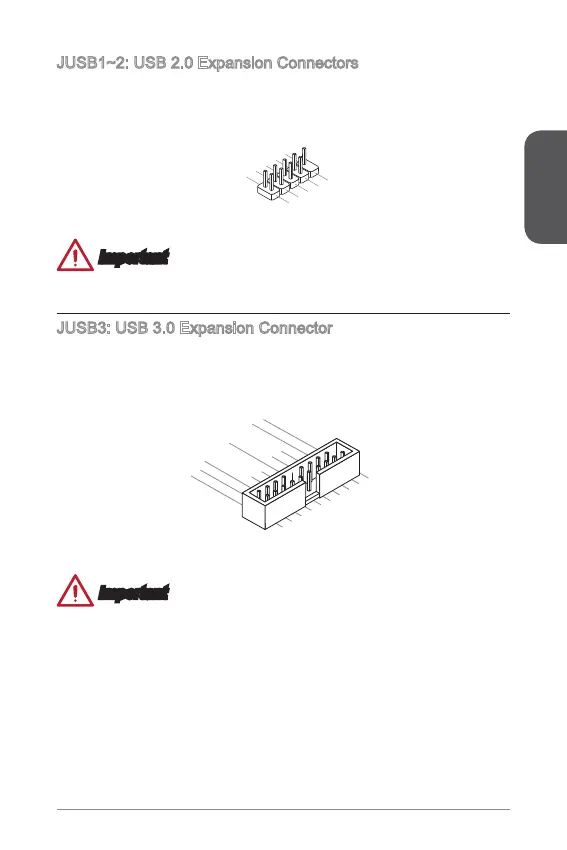

JUSB1~2: USB 2.0 Expansion Connectors
This connector is designed for connecting high-speed USB peripherals such as USB
HDDs, digital cameras, MP3 players, printers, modems, and many others.
1
.
V
C
C
3
.
U
S
B
0
-
1
0
.
NC
5
.
U
S
B
0
+
7
.
G
r
o
u
n
d
9
.
N
o
P
i
n
8
.
G
r
o
u
n
d
6
.
U
S
B
1
+
4
.
U
S
B
1
-
2
.
V
C
C
Important
Note that the VCC and GND pins must be connected correctly to avoid possible
damage.
JUSB3: USB 3.0 Expansion Connector
The USB 3.0 port is backwards compatible with USB 2.0 devices. It supports data
transfer rates up to 5Gbits/s (SuperSpeed).
5.
USB3_TX_C_DN
4.Ground
3.USB3_RX_DP
2.U SB 3_R X _D N
1.Pow er
10.Ground
9. +U SB 2.0
8. -USB2.0
7.Ground
6.USB3_TX_C_DP
20.No Pin
19.Pow er
18.USB3_RX_DN
17.USB3_RX_DP
16.Ground
15.USB3_TX_C_DN
14.USB3_TX_C_DP
13.Ground
12.USB2.0 -
11
. +
USB2.0
Important
 Note that the VCC and GND pins must be connected correctly to avoid possible
damage.
 To use a USB 3.0 device, you must connect the device to a USB 3.0 port through
an optional USB 3.0 compliant cable.

MSI V2 Series Specifications

General

Memory Slots	4
SATA 6Gb/s	6
SATA Ports	6
USB 3.0 Ports	6
Form Factor	ATX
M.2 Slots	1
Wi-Fi	No
Bluetooth	No
Audio	Realtek ALC887 7.1-Channel HD Audio
