HDMI-Out Port
The High-Defi nition Multimedia Interface (HDMI) is an all-digital audio/ vid-
eo interface capable of transmitting uncompressed streams. HDMI supports
all TV format, including standard, enhanced or high-defi nition video, plus
multi-channel digital audio on a single cable.
USB 2.0 Port
The USB (Universal Serial Bus) port is for attaching USB devices such
as keyboard, mouse, or other USB-compatible devices. It supports up to
480Mbit/s (Hi-Speed) data transfer rate.

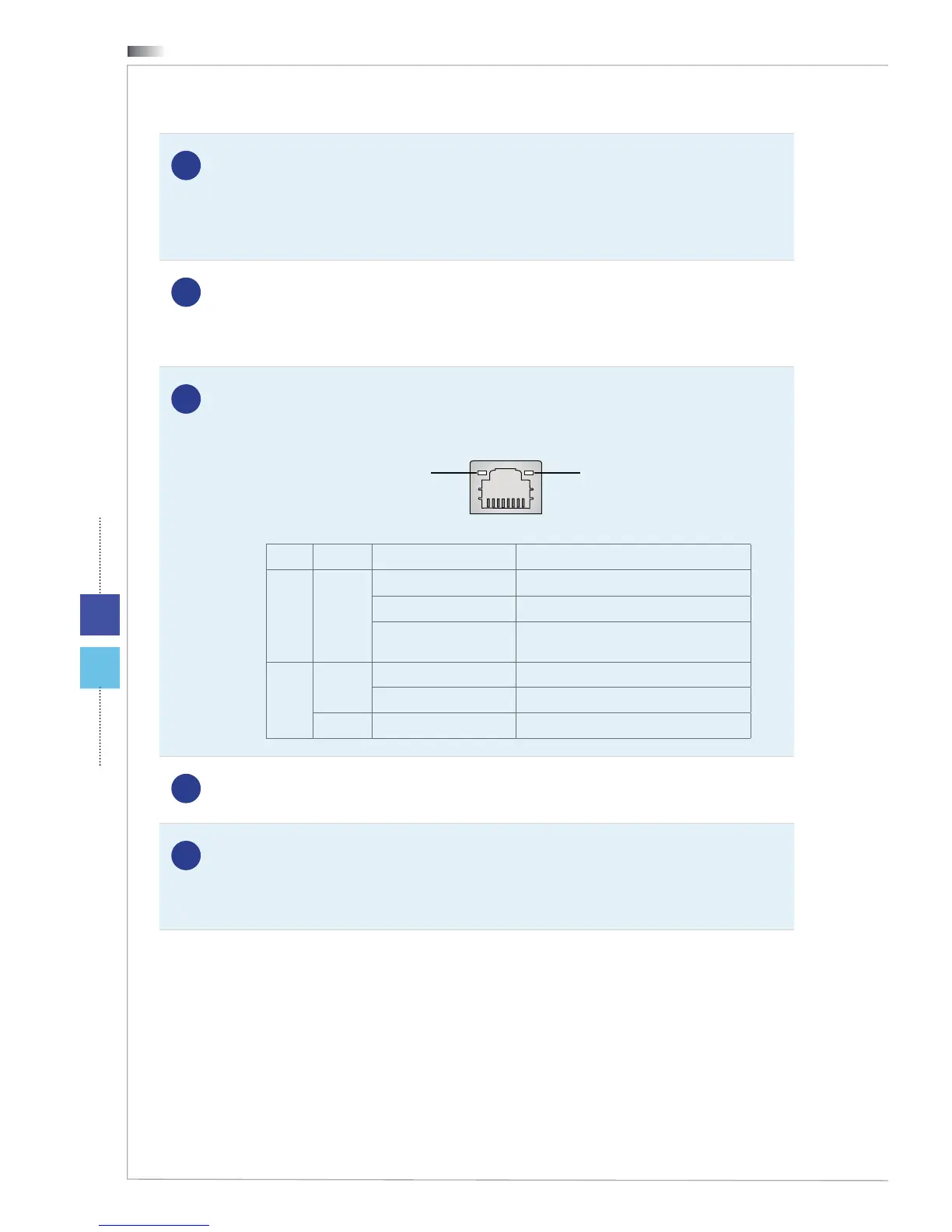

RJ-45 LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
YellowGreen/ Orange
LED Color LED State Condition
Right Yellow Off LAN link is not established.
On (steady state) LAN link is established.
On (brighter & pulsing) The computer is communicating with
another computer on the LAN.
Left Green Off 10 Mbit/sec data rate is selected.
On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
Speaker Jack
This is a connector for speakers.
Optical S/PDIF-Out Jack
This S/PDIF (Sony & Philips Digital Interconnect Format) jack is provided
for digital audio transmission to external speakers through an optical fi ber
cable.
