25

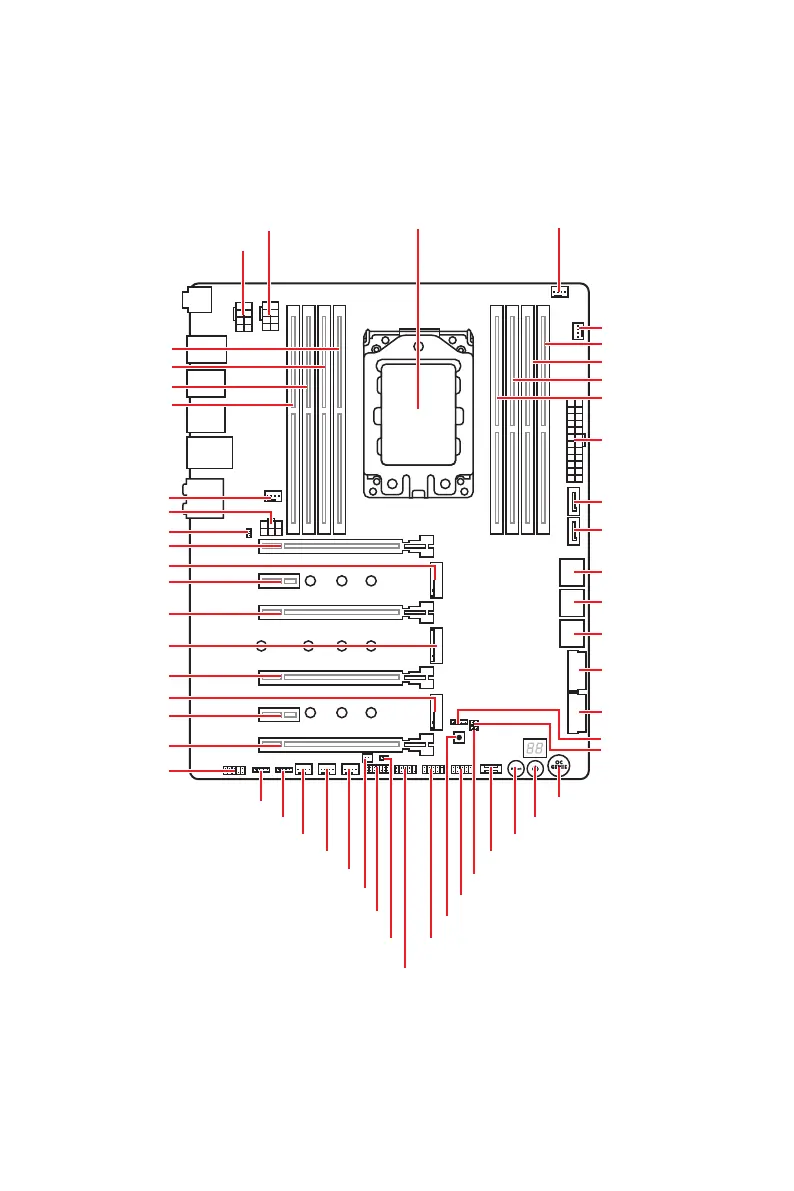

Overview of Components
Overview of Components
CPU_PWR1
CPU_PWR2
CPU Socket
CPU_FAN1
PUMP_FAN1
JUSB5
JUSB4
JUSB3
JUSB2
JUSB1
JFP1
JSEL1
DEMOLED1
JCI1
JRGB1
JRAINBOW1
JFP2
JSLOW
OC1
POWER1
RESET1
SYS_FAN2
SYS_FAN3
SYS_FAN4
SYS_FAN1
PCIE_PWR1
JBAT1
PCI_E1
M2_1
M2_2
M2_3
PCI_E2
PCI_E3
PCI_E4
PCI_E5
PCI_E6
JTPM1
JAUD1
JPWRLED1
SATA▼3▲4
SATA▼5▲6
SATA▼7▲8
ATX_PWR1
SATA1
SATA2
DIMMC1
DIMMC2
DIMMD1
DIMMD2
DIMMB2
DIMMB1
DIMMA2
DIMMA1
