Overview of Components
1
2 14
13
1 LPC Clock 2
3V Standby power
3 LPC Reset 4 3.3V Power
5
LPC address & data pin0
6 Serial IRQ
7
LPC address & data pin1
8 5V Power
9
LPC address & data pin2
10 No Pin
11
LPC address & data pin3
12 Ground
13 LPC Frame 14 Ground

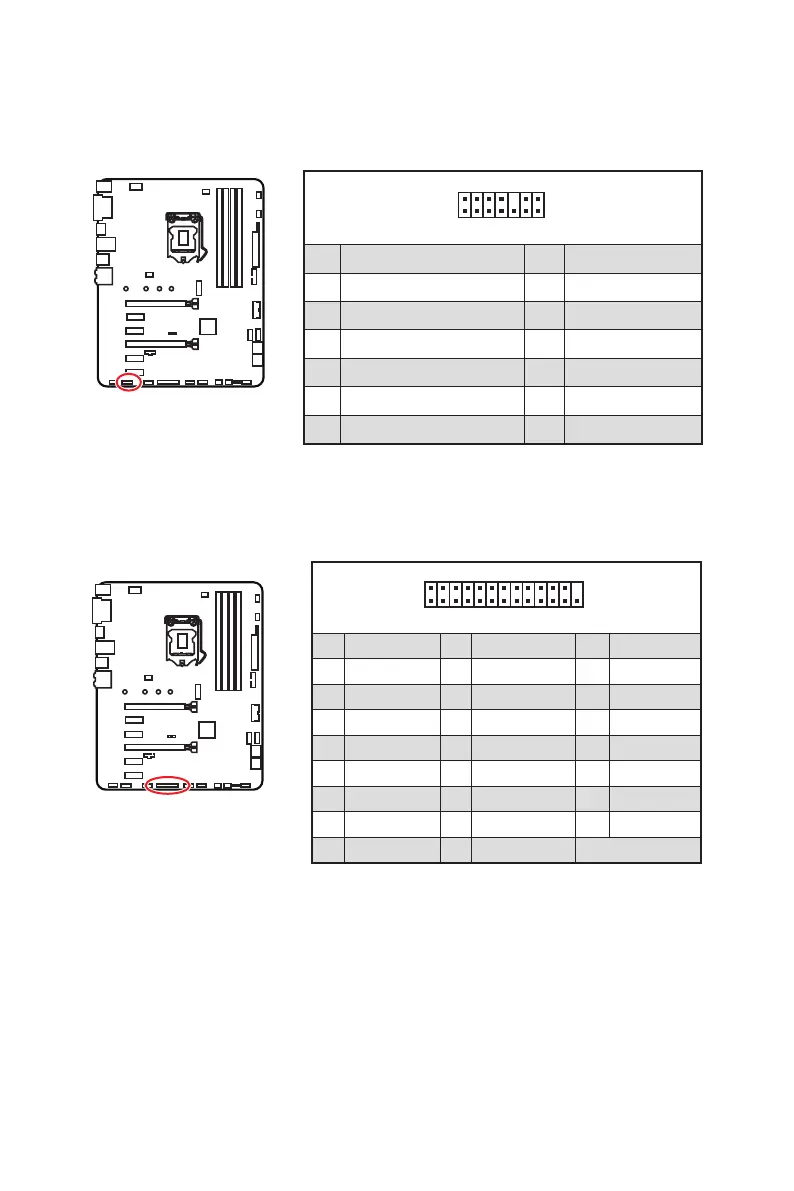

JTPM1: TPM Module Connector
This connector is for TPM (Trusted Platform Module). Please refer to the TPM security
platform manual for more details and usages.
1
2 26
25
1 RSTB# 2 AFD# 3 PRND0
4 ERR# 5 PRND1 6 PINIT#
7 PRND2 8 LPT_SLIN# 9 PRND3
10 Ground 11 PRND4 12 Ground
13 PRND5 14 Ground 15 PRND6
16 Ground 17 PRND7 18 Ground
19 ACK# 20 Ground 21 BUSY
22 Ground 23 PE 24 Ground
25 SLCT 26 No Pin
JLPT1: Parallel Port Connector
This connector allows you to connect the optional parallel port with bracket.
