MSI Z370M MORTAR User Manual

29
Overview of Components
BAT1

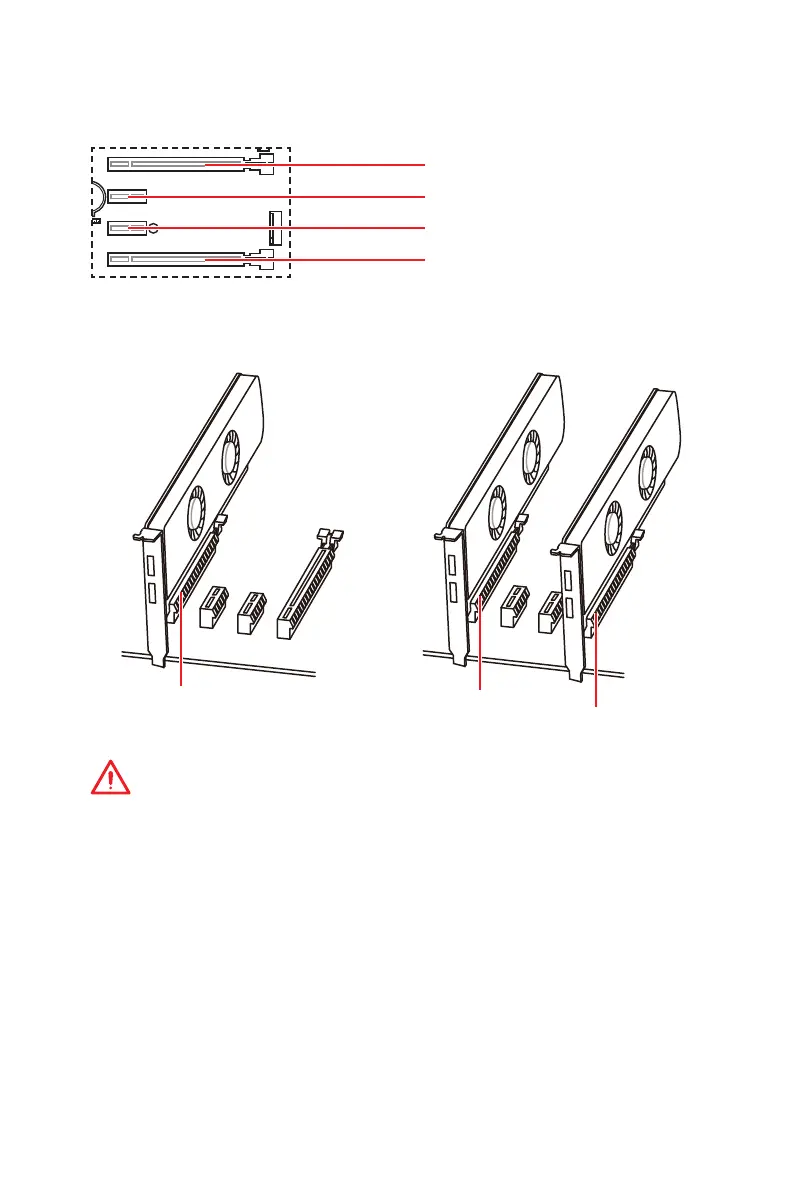

PCI_E1~4: PCIe Expansion Slots
PCI_E1: PCIe 3.0 x16 (CPU lanes)
PCI_E2: PCIe 3.0 x1 (PCH lanes)
PCI_E3: PCIe 3.0 x1 (PCH anes)
PCI_E4: PCIe 3.0 x4 (PCH lanes)
Multiple graphics cards installation recommendation
x16
x16
x4
Important
y For a single PCIe x16 expansion card installation with optimum performance, using
the PCI_E1 slot is recommended.
y When adding or removing expansion cards, always turn off the power supply and
unplug the power supply power cable from the power outlet. Read the expansion
card’s documentation to check for any necessary additional hardware or software
changes.
y If you install a large and heavy graphics card, you need to use a tool such as
MSI Gaming Series Graphics Card Bolster to support its weight and to prevent
deformation of the slot.

MSI Z370M MORTAR Specifications

General

Form Factor	Micro ATX
Socket	LGA 1151
Chipset	Intel Z370
Memory Type	DDR4
Memory Slots	4
Max Memory	64 GB
PCIe x16 Slots	2
PCIe x1 Slots	2
SATA 6Gb/s	6
M.2 Slots	2
USB 3.1 Gen1 (Rear)	2
USB 2.0 (Rear)	2
Audio	Realtek ALC892 Codec
RAID Support	0, 1, 5, 10
Memory Speed	4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz
USB 3.1 Gen2 (Rear)	1
