M2_1~2: M.2 Slots (Key M)
M2_1
M2_2

Important
 Intel® RST only supports PCIe M.2 SSD
with UEFI ROM.
 If your M.2 SSD equips its own heatsink,
please remove the M.2 plate or rubber
cube in the M.2 slot before installing
M.2 SSD. Do not re-install the heatsink
supplied with your motherboard.

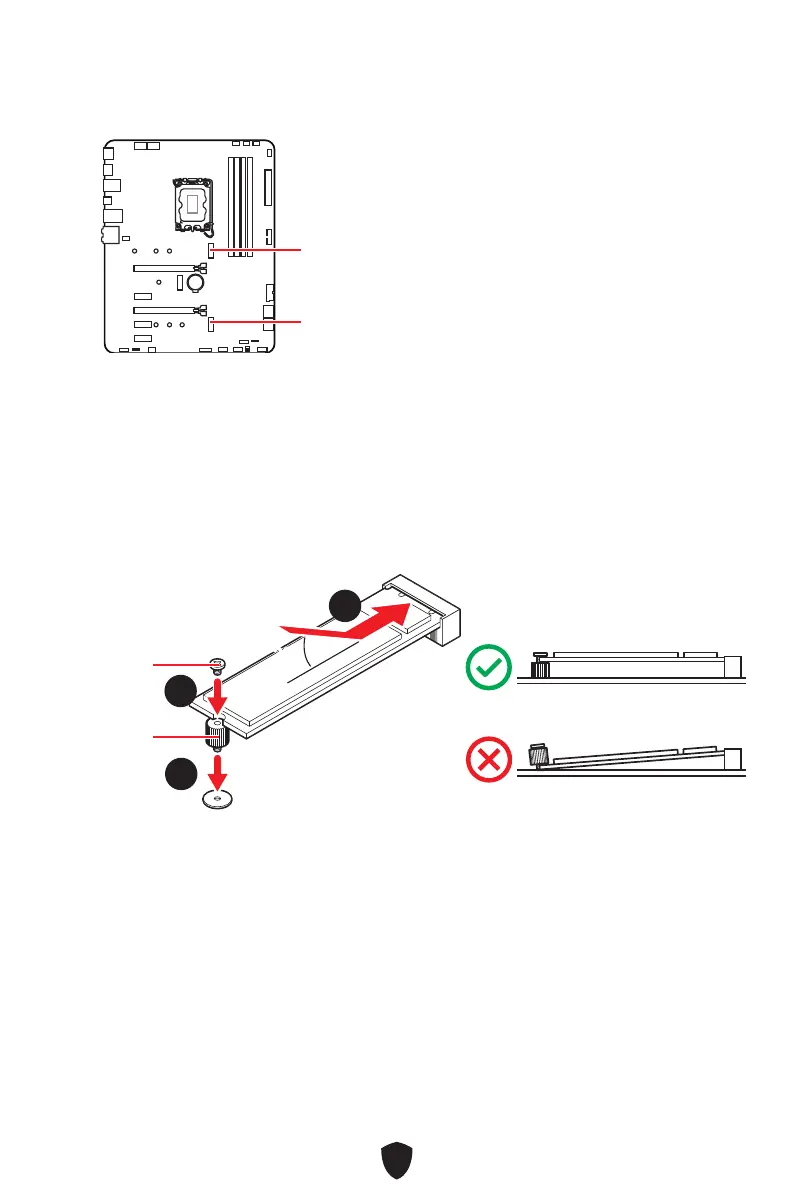

Installing M.2 module into M2_1 slot
1. Move and fasten the M.2 standoff before you install 2242/ 2260/ 22110 SSD. Skip
this step if you install 2280 SSD.
2. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
3. Secure the M.2 SSD in place with the M.2 screw.
30º30º
33
11
22
M.2 screw
M.2 standoff
